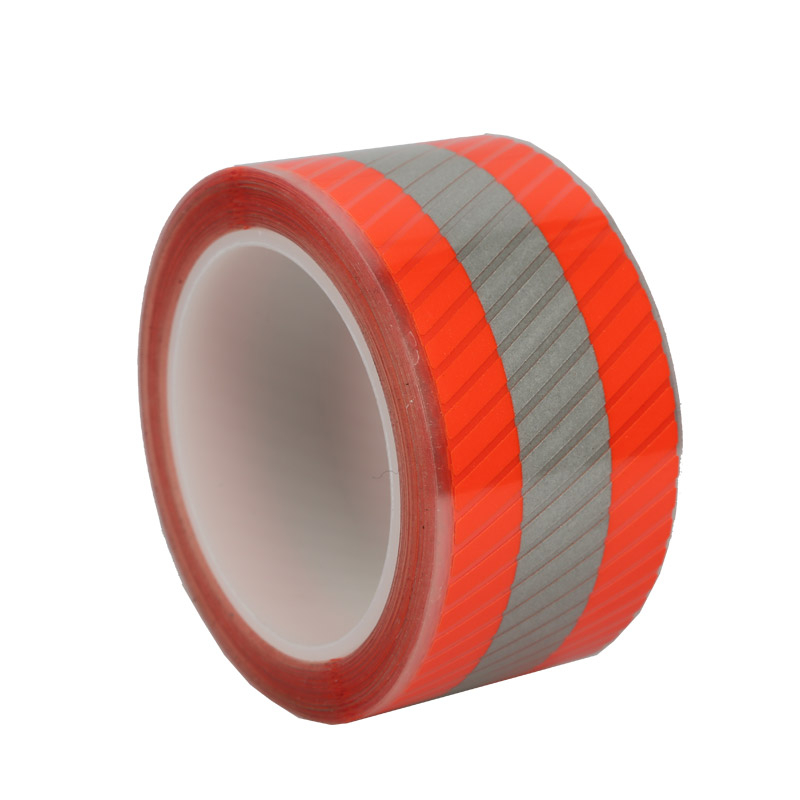

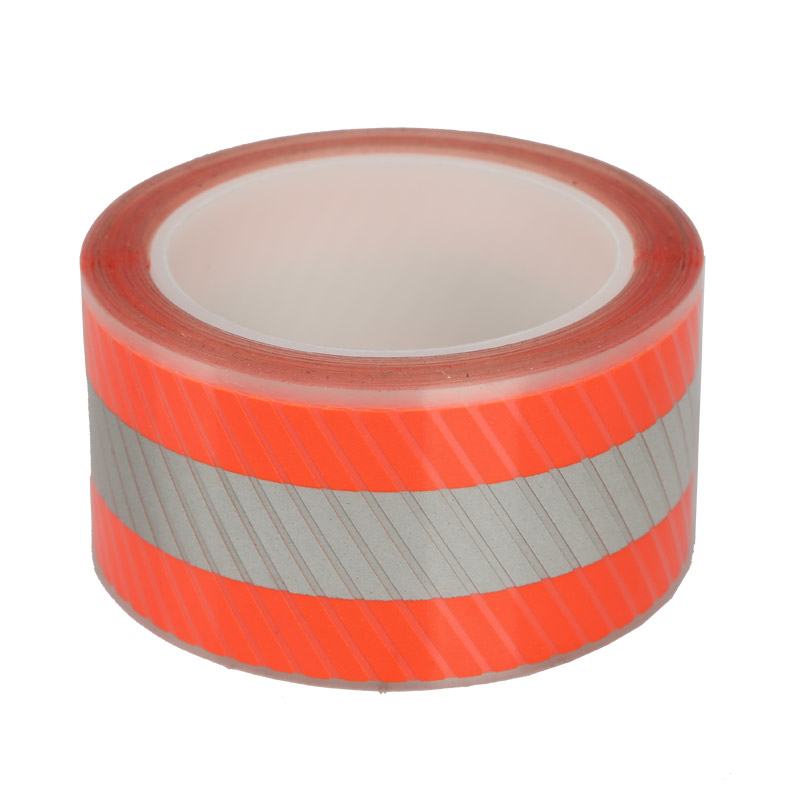

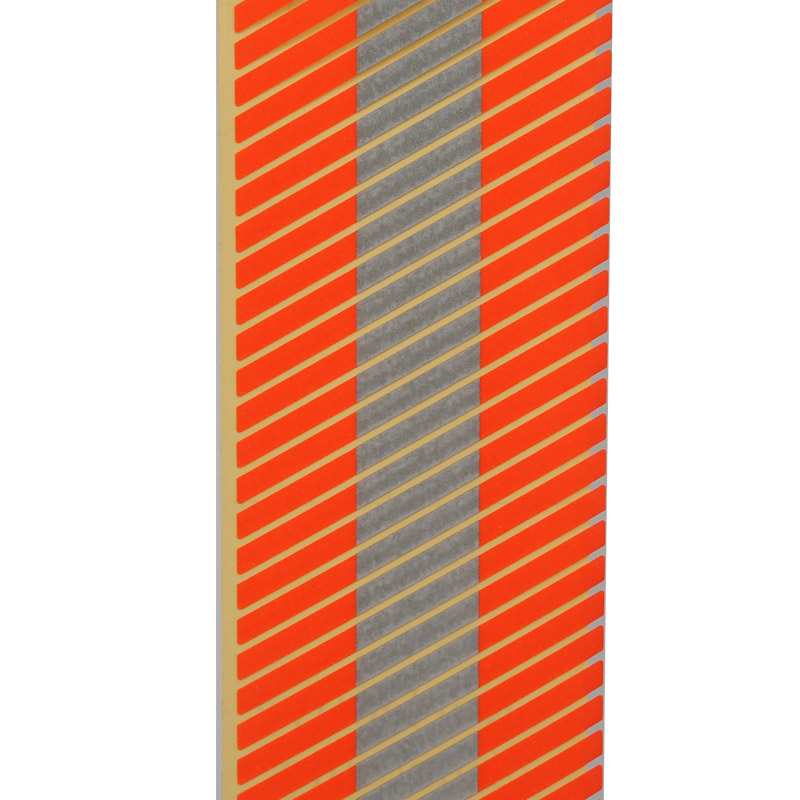

D1996 Fluo-Orange Segmented Flame Retardant Warning Tape

Fluo-Orange Segmented Flame Retardant Warning Tape is used for safety protective clothing and workwear that meet general flame-resistant requirements. Not only does it provide excellent visibility for warning purposes, but it is also breathable. Conspicuous during the day, it can reflect light back to its source at night, making individuals and objects more visible under low-light conditions, thus playing a vital role in preventing accidents and ensuring safety across various industrial and occupational environments.

Product model	Product specifications
D1996	130cm x 50m, 5cm x 100m, 3.8cm x 100m, 2.5cm x 100m
Product color	Processing
Fluorescent Orange/Silver/Fluorescent Orange	Heat Transfer
Certified	Fabric composition
Oeko-Tex 100, EN ISO 20471, EN469, EN11611, EN11612, ANSI/ISEA 107, UL	100% polyurethane
Washing Performance
Domestic Washing: 50 cycles at 60°C (ISO 6330) Dry cleaning: 5 cycles (ISO 3175)

SEND INQUIRY

Details

Features

Features

1. Superior Warning Capability

The fluorescent color ensures the warning tape is highly conspicuous during the day, while the reflective parts come into play at night. This maximizes the visual representation of safety performance.

2. Excellent Breathability

The segmented structure provides the warning tape with outstanding breathability, prevents heat buildup, and offers moderate stretch.

3. Excellent water washing resistance

According to ISO6330 standard domestic washing times ≥50 cycles at 60℃, ISO3175 dry cleaning ≥5 cycles. Does not affect the reflective performance.

This reflective tape, when heat transfer onto other textiles and substrates, significantly enhances the wearer's visibility in low-light or poor-visibility conditions. It is widely used in safety protection products such as silver-appearance fabrics, specialized items, and protective clothing or professional workwear.

Related Products List

Product Model	Product Name	Specification	Color	Processing
D1995	Fluo-Yellow Segmented Flame Retardant Waring Tape	5cm*100m	Fluo Yellow/Silver/Fluo Yellow	Heat Transfer
D1992	Fluorescent Orange Aramid Flame Retardant Warning Tape	5cm*100m	Fluo Orange/Silver/Fluo Orange	Sewing
D1994	Fluorescent Orange Cotton Flame Retardant Warning Tape	5cm*100m	Fluo Orange/Silver/Fluo Orange	Sewing

Wide Applications

Occupational Workwear

How to Distinguish Different Brightness Reflective Cloth?

Method 1: Look at the apparent color in the normal light state

Industrial-Reflective-Silver-Cloth_01_031

Bright reflective cloth

Color: Dark grey

The reflection brightness is low

Do not wash, scratch resistant

Industrial-Reflective-Silver-Cloth_01_03

Highlighter reflective fabric

Color: grey

Relatively high reflective brightness

Domestic washing times 30 cycles

Wash resistant, scratch resistant

Industrial-Reflective-Silver-Cloth_01_033

Bright silver reflective fabric

Color: silver

High reflection brightness

Domestic washing times more than 30 cycles

Wash resistant, scratch resistant

Method 2: Look at the brightness of the reflective state

// DM // Product Use Tips

01 /

How to test the reflective effect?

1. Take pictures with a mobile phone at a distance of more than 3 meters in a dark environment.

2. Stand a flashlight at a height of more than 5 meters in the dark, with the flashlight shining at the tip of the nose to reflect light.

3. Conduct the test with a car at a distance of more than 20 meters in a dark environment.

02 /

How is the adhesion performance?

1. The reflective adhesive backing is a chronic adhesive. The longer the time, the stronger the stickiness.

2. Please be careful when pasting and stick it in one go. Pasting it a second time will affect the adhesion.

3. Please stick it firmly when pasting. It will be completely firm after 72 hours and can be used all day long.

4. If you need to remove it after long-term use, please heat it up with a hair dryer before removing.

5. Surface residue glue can be wiped off with alcohol or toilet water.

03 /

Why is the reflective effect I tested not strong?

The reflection you tested was weak because your testing method was incorrect.

1. Please conduct the test at a distance of at least 3 meters. Due to the issue of reflection Angle, it needs to be at a certain distance away.

2. The principle of reflective stickers is that wherever the light source comes from, the reflection will return to the light source, thereby alerting the driver.

3. The reflective intensity of reflective stickers is directly proportional to the light intensity; the stronger the light source, the stronger the reflection.
