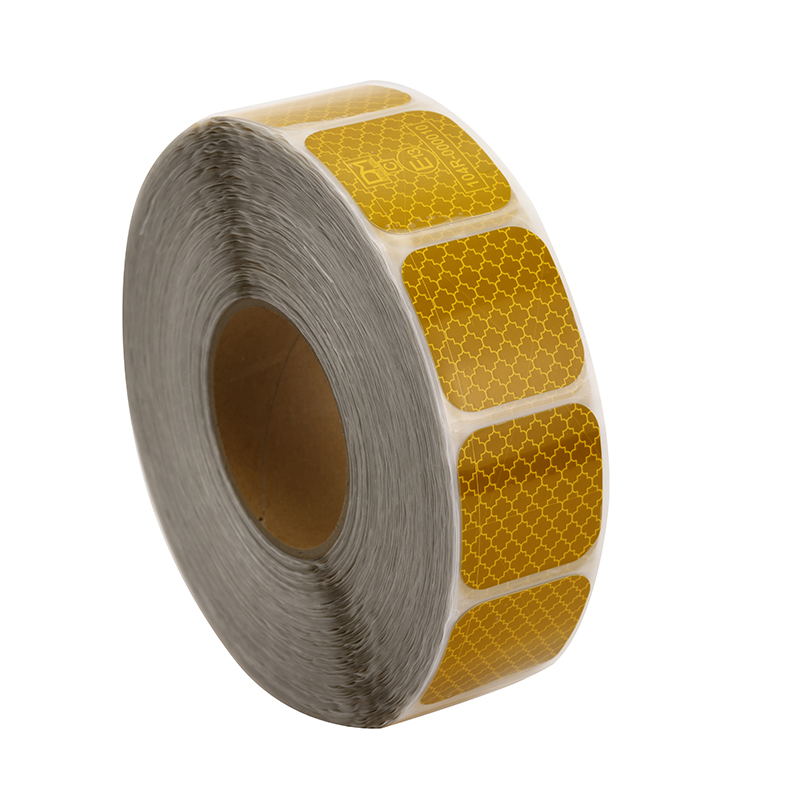

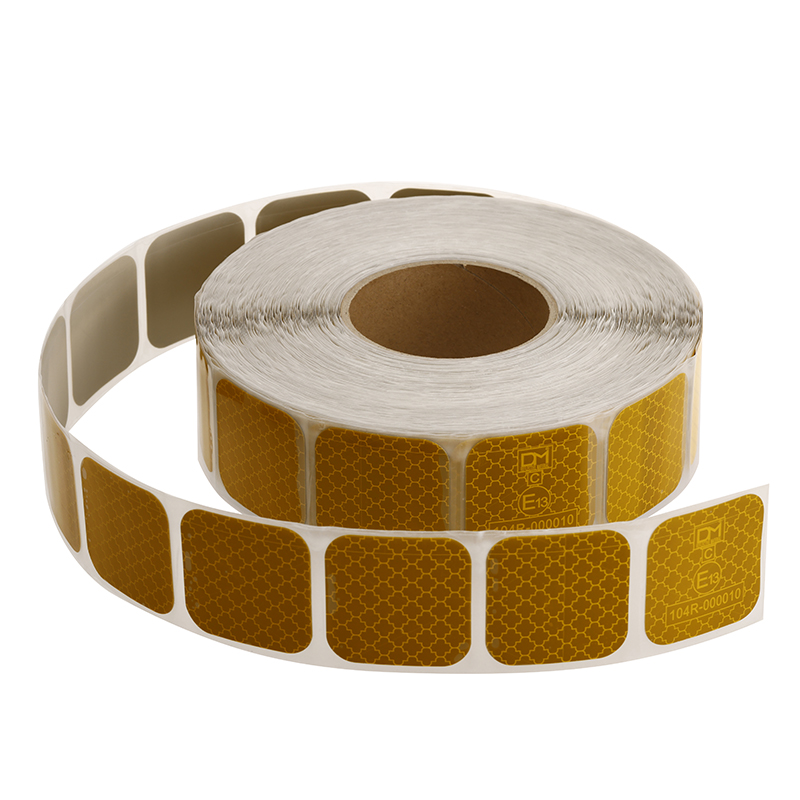

DM9600 ECE Conspicuity Marking Tape

DM9600 is a high-performance conspicuity marking tape launched by Daoming Optics. It uses reflective materials that meet the ECE 104 standard and has excellent weather resistance and retroreflective properties. The product is made through high-precision molding and aluminum plating processes to effectively prevent water seepage and delamination, ensuring good visibility in harsh environments. DM9600 is mainly used in large commercial vehicles such as trailers and trucks to enhance recognition at night or in low-light environments. It meets the strict requirements of the latest European ECE 104 regulations on visibility of vehicle markings and is an important configuration to improve road driving safety.

Product model	Structure:
DM9600	PMMA surface layer and metalized layer
Durability:	Size：
7 years	5mm*50m/roll
Color：	Application:
Yellow,White,Red	trucks,trailers,other heavy and long vehicles etc.
Certified:
ECE-104, AIS-090

SEND INQUIRY

Details

Features

Features

1.Fully complies with ECE 104 Class C

2.Superior retroreflective performance

Effectively reducing accident and enhancing driving safety

3.Single-layer construction and no edge sealing required

4.Exceptional weather resistance

Guaranteed 7 years service life, outstanding impact resistance, resistant to most solvents, waterproof and delamination, withstands high-pressure power washing .

5.Easy to use

Easy to stick, easy to cut, no edge sealing required

Related Products List

Product Model	Product Name	Specification	Color	Processing
DM9300	DOT-C2 conspicuity marking tape	5cm*45.7m	Red&White
DMCT1700	DOT-C2 conspicuity marking tape	50mm45.7m 50mm50m	white 6”+ red 6”, white 7”+ red 11”

Wide Applications

trucks,trailers,other heavy and long vehicles etc.

truck

Distinguish

How to identify DM9600,DM9300&DMCT1700?

DM9600

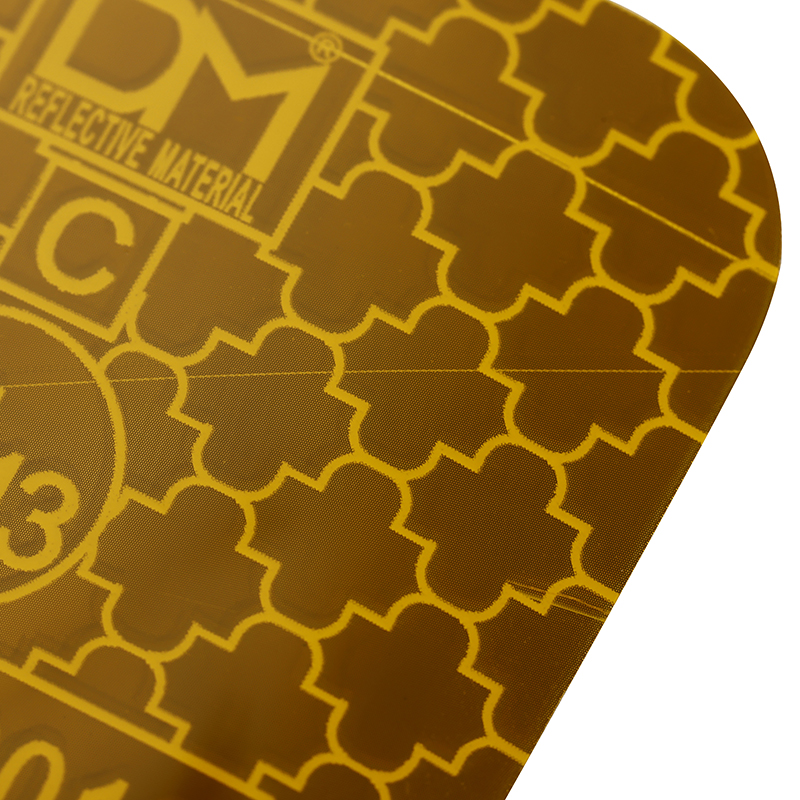

- Embedded lantern pattern

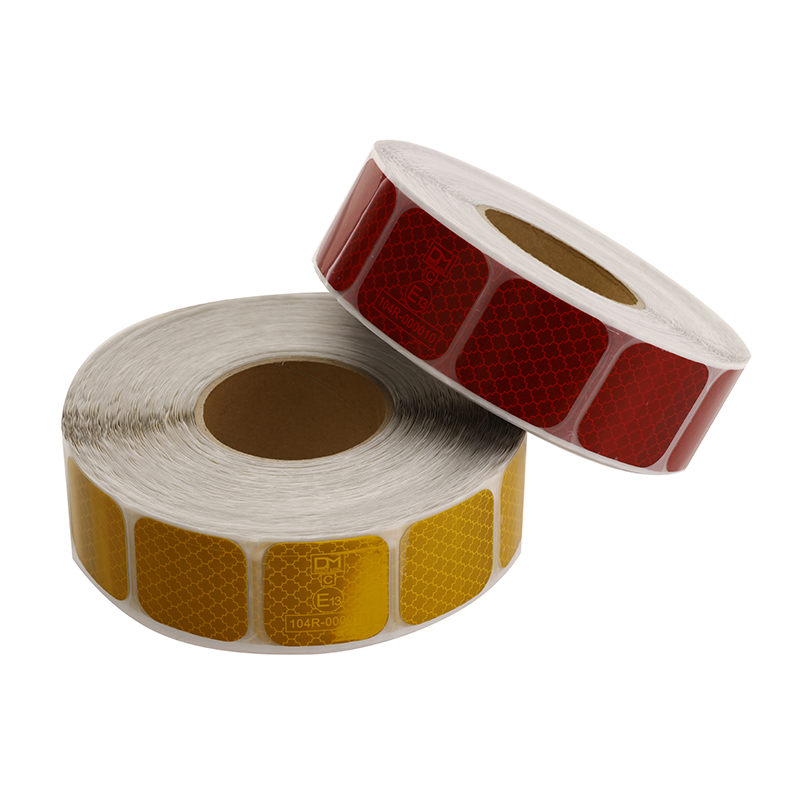

- Single color (only white/yellow/red)

- Two types(segmented tape/rigid tape)

DMCT1700

- Embedded diamond pattern

- Alternating red & white colors

- Displays alternating light-dark strips by changing the viewing angle

DM9300

- Embedded Hexagonal pattern

- Alternating red & white colors

// DM // Product Use Tips

01 /

How to assure proper adhesive bonding?

Material must be applied when the air and surface temperature is between 15°C and 38°C to assure proper adhesive bonding. Surfaces must be cleaned for all grease, oil and dirt. Use a clean towel and Isopropyl alcohol or similar to wipe the surface before application. If any air bubbles are trapped, use a pin to puncture the bubble and squeegee to push the air towards the pin hole.

02 /

How to perform maintenance and cleaning?

Hand wash with sponge, cloth, or soft brush using warm water and detergent. The cleaner must be wet, non-abrasive, without strong solvents and have a pH value between 3 and 11 (neither strongly acidic nor strongly alkaline). Rinse thoroughly.To remove grease, oil. or tar, use cloth moistened with heptane, VM&P naptha or mineral spirits. Wash with detergent and water then rinse thoroughly.

Using high pressure cleaning equipment, the following conditions should be applied:

• Maximum pressure 80 bar

• Maximum temperature 60°C

• Minimum of 1 metre distance of cleaning jet from sheeting surface

• Cleaning wand to be held at no greater angle than 15 degree from perpendicular to the sheeting surface

• Wide spray pattern

03 /

How to properly store the product?

Store the tape in a clean ,dry area without direct sunlight.Maintain storage temperature between 65-75°F (18-24°C) with humidity between 30-50%.Store rolls horizontally in carton or in original packaging .
