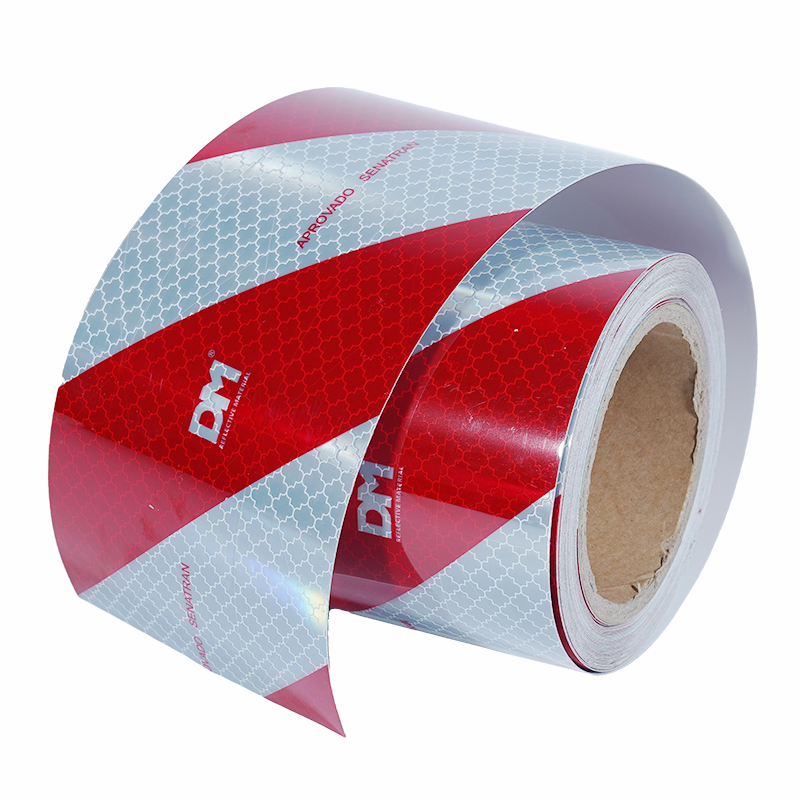

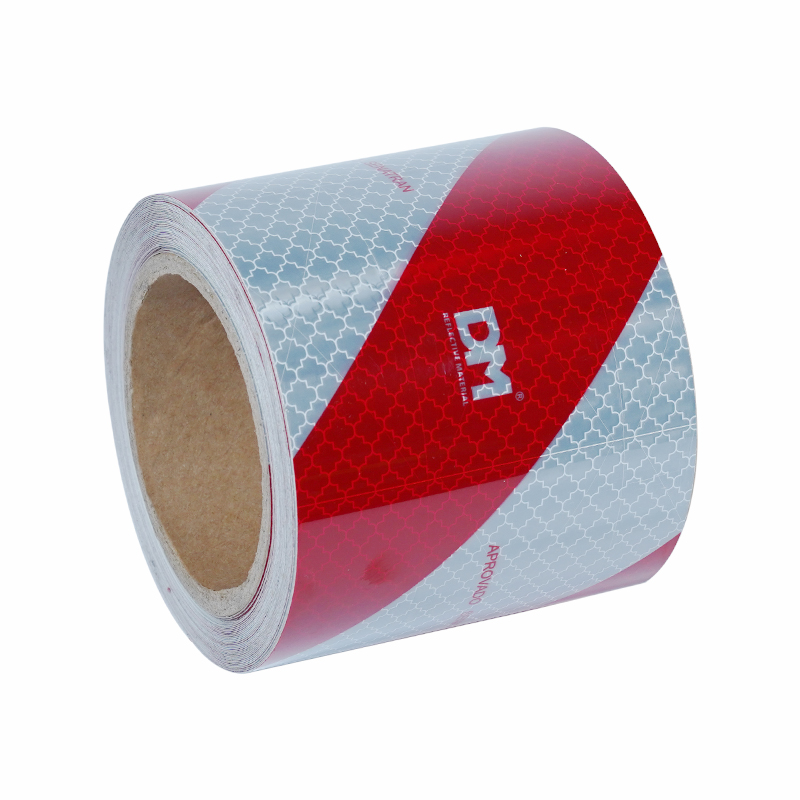

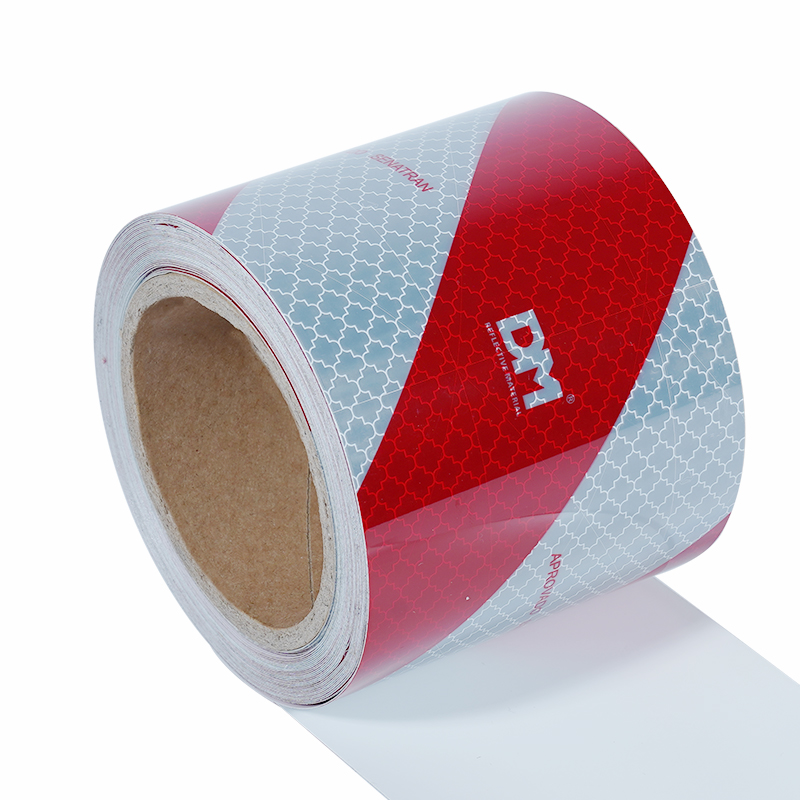

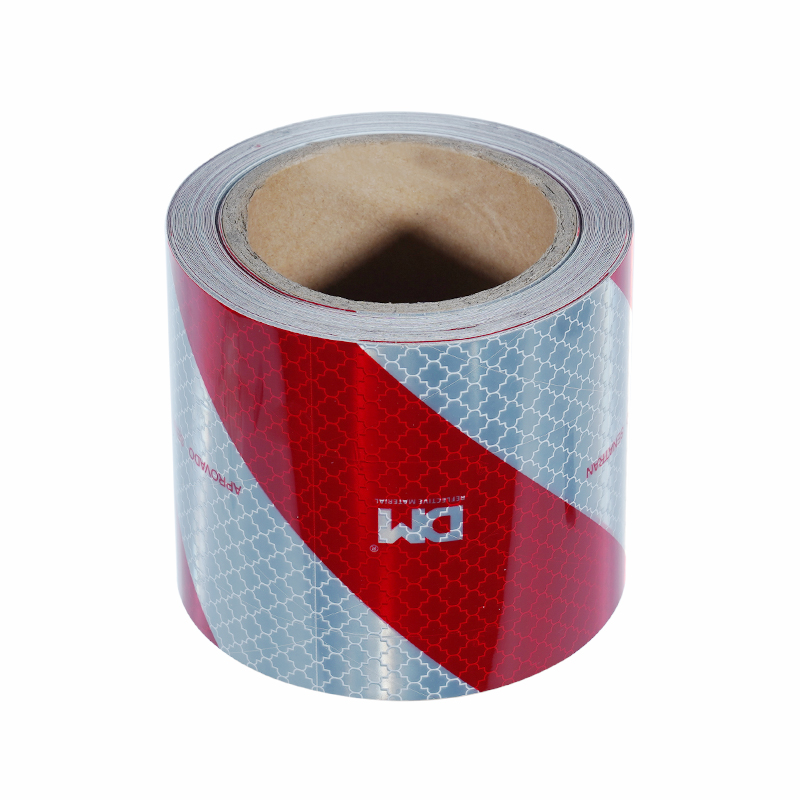

DM9660 Brazilian Conspicuity Marking Tape
SEND
INQUIRY
Details
Features
Related Products
Application
Use Tips
CustomizationFeatures

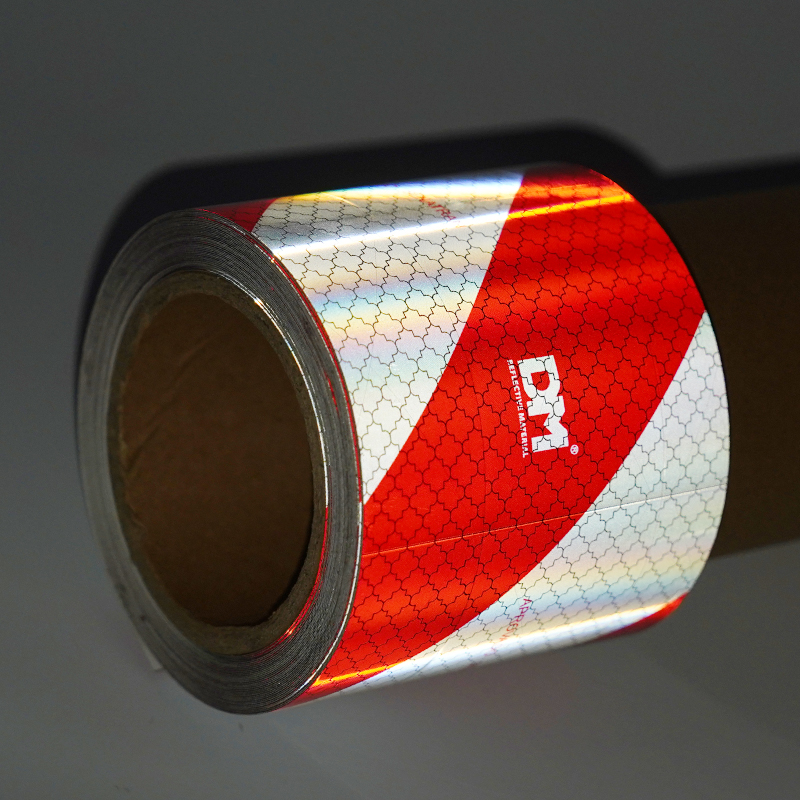

1.Superior Retroreflectivity for High Night Visibility** Adopting microprismatic optical structure, the tape reflects light back to the source path. It Complies with the requirements of the new CONTRAN Resolution No. 981/2022
, significantly enhancing vehicle detectability in nighttime or low-light conditions and reducing accident risks.
2. Excellent Durability Without Edge Sealing** The tape only has a metallized layer and requires no edge sealing. The PMMA overlay provides a durability of more than 7 years, withstanding harsh outdoor environments such as sun exposure and rain, and is not prone to aging and damage.
3. Multiple Types for Wide Application Scenarios** Available in four types including rigid, curtain, tanker and segmented, the tape is suitable for different carriers such as flat rigid surfaces, truck canvas curtain sides and tanker surfaces, meeting the needs of various heavy-duty vehicles.
4. Custom Logo Supported for Branding** Custom logos and branding patterns can be added according to customer needs, helping enterprises enhance brand display while improving vehicle safety.
Custom Logo Supported for Branding** Custom logos and branding patterns can be added according to customer needs, helping enterprises enhance brand display while improving vehicle safety.
Related Products List
|
Product Model |
Product Name |
Specification |
Color |
Processing |
|
DM9300 |
DOT-C2 conspicuity marking tape |
5cm*45.7m |
Red&White |
|
|
DMCT1700 |
DOT-C2 conspicuity marking tape |
50mm*45.7m 50mm*50m
|
white 6”+ red 6”, white 7”+ red 11”
|

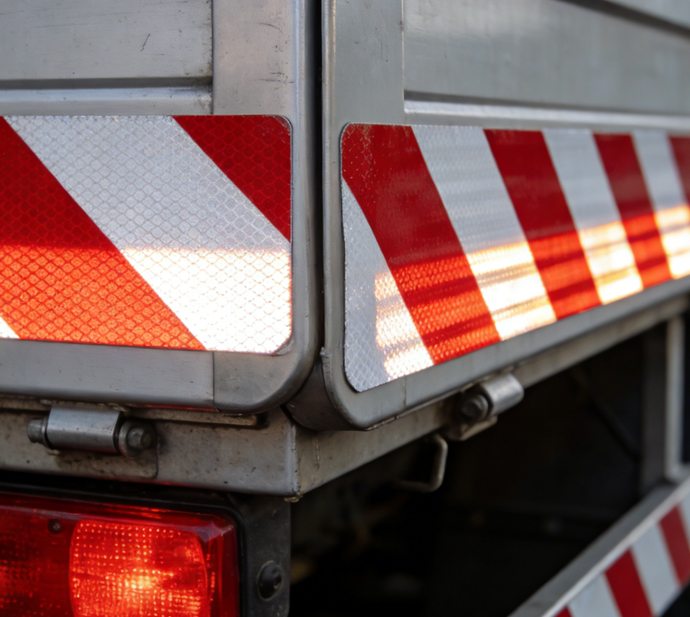

Conspicuity Marking Tape1

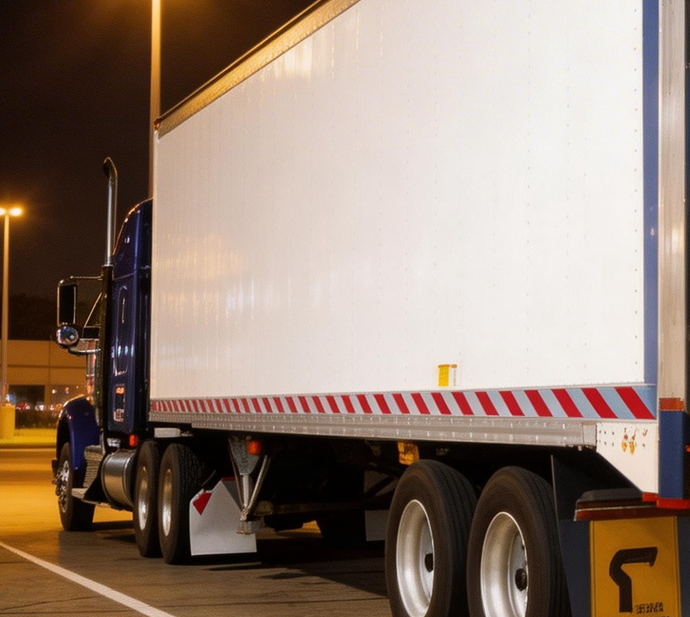

Conspicuity Marking Tape2

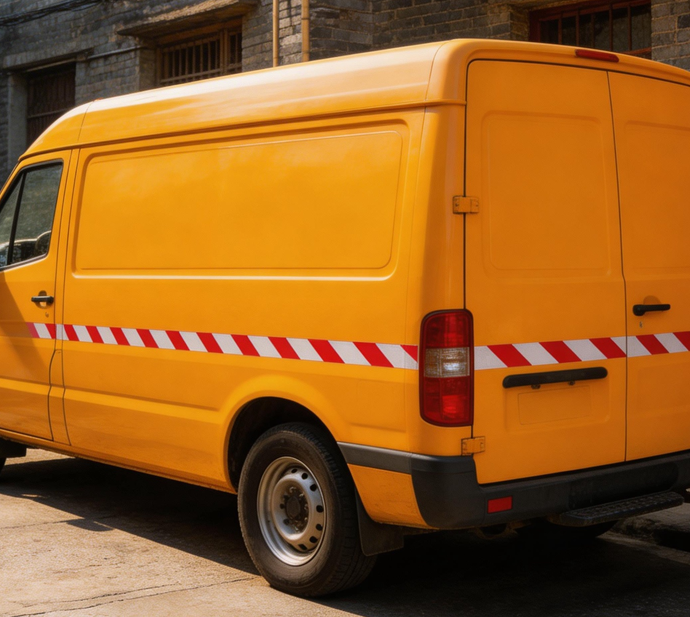

Conspicuity Marking Tape3

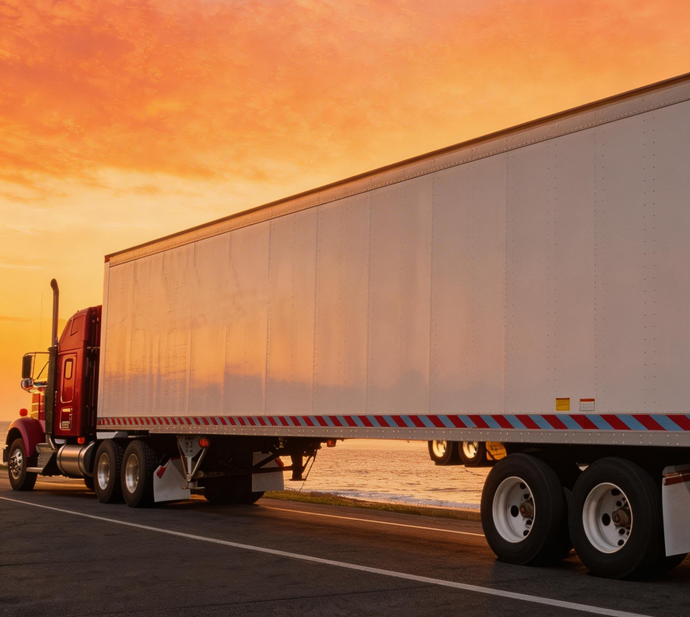

Conspicuity Marking Tape4
01
Distinguish

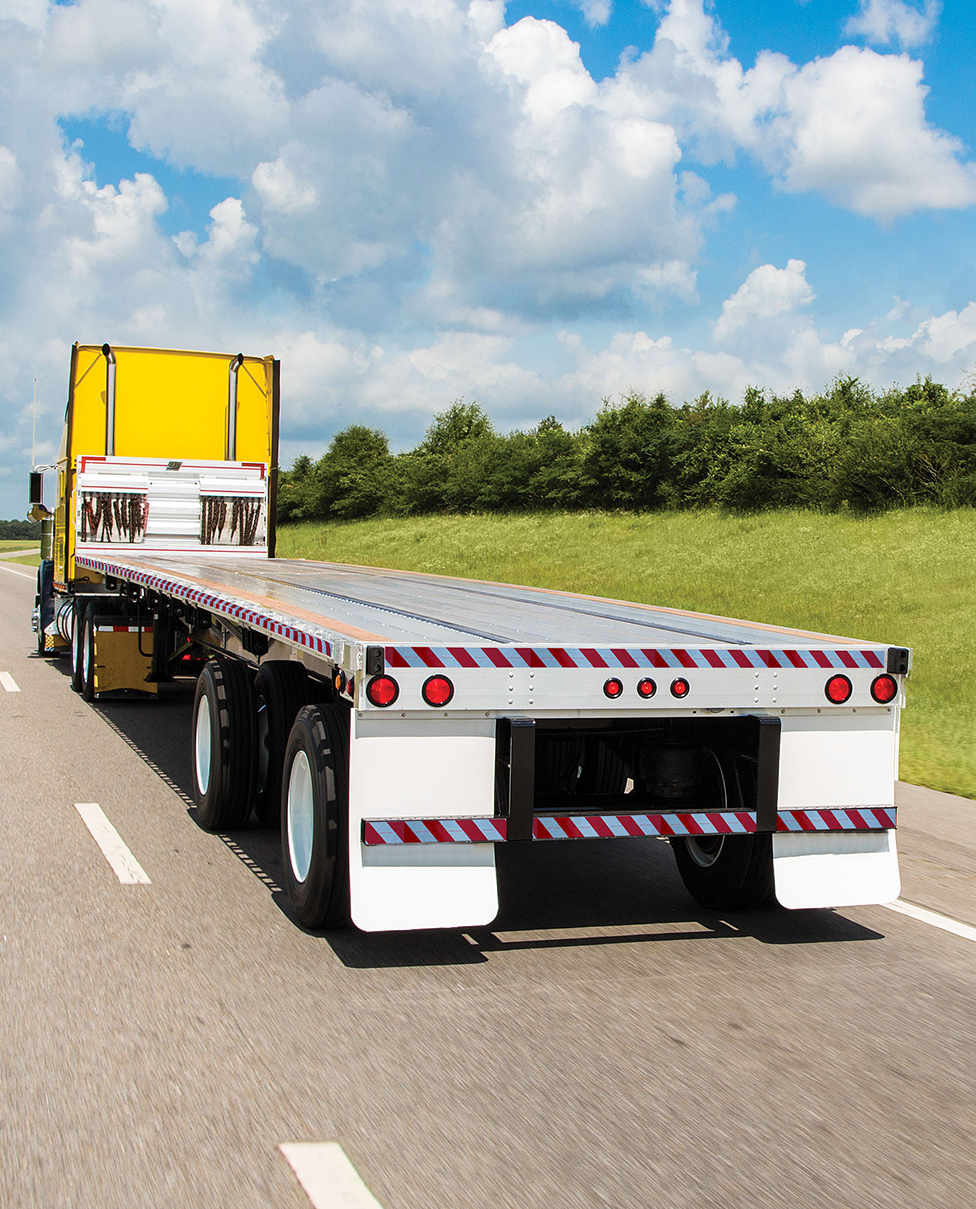

It is applicable to the sides and rear of trucks, trailers, tankers and other heavy and long vehicles. It can effectively improve the visibility of vehicles in low-visibility environments such as nighttime, foggy and rainy days, reduce the incidence of traffic accidents, and meet the relevant standards for vehicle safety marking.
01
/
Application Notes
1. Application Temperature: The air and surface temperature during construction should be between 15°C and 38°C to ensure firm adhesion of the pressure-sensitive adhesive.
2. Surface Cleaning: Before application, wipe the surface with isopropyl alcohol or similar cleaners to remove grease, oil and dirt.
3. Bubble Handling: If bubbles are generated after application, puncture the bubbles with a needle tip and squeeze the air out from the pinhole with a squeegee.
2. Surface Cleaning: Before application, wipe the surface with isopropyl alcohol or similar cleaners to remove grease, oil and dirt.
3. Bubble Handling: If bubbles are generated after application, puncture the bubbles with a needle tip and squeeze the air out from the pinhole with a squeegee.
02
/
Cleaning and Maintenance
1. Daily Cleaning: Clean with sponge, soft cloth or soft brush, warm water and neutral detergent, with the detergent pH value between 3 and 11.
2. Oil Stain Removal: To remove grease and tar stains, wipe with cloth moistened with heptane or mineral spirits, then wash with detergent and rinse thoroughly.
3. High-pressure Cleaning: When using high-pressure cleaning equipment, the maximum pressure shall not exceed 80bar, the maximum temperature shall not exceed 60°C, the distance between the cleaning nozzle and the tape surface shall not be less than 1 meter, the angle with the vertical surface shall not exceed 15°, and the wide spray pattern shall be adopted.
2. Oil Stain Removal: To remove grease and tar stains, wipe with cloth moistened with heptane or mineral spirits, then wash with detergent and rinse thoroughly.
3. High-pressure Cleaning: When using high-pressure cleaning equipment, the maximum pressure shall not exceed 80bar, the maximum temperature shall not exceed 60°C, the distance between the cleaning nozzle and the tape surface shall not be less than 1 meter, the angle with the vertical surface shall not exceed 15°, and the wide spray pattern shall be adopted.
03
/
Storage and Shelf Life
1.Storage Conditions: Store in a clean, dry place away from direct sunlight.
2. Shelf Life: The total shelf life of unprocessed and processed tapes shall not exceed 2 years from the date of receipt; processed tapes must be used within 1 year after processing.
2. Shelf Life: The total shelf life of unprocessed and processed tapes shall not exceed 2 years from the date of receipt; processed tapes must be used within 1 year after processing.
-
SelectionDetermine product model, color, quantity price and delivery time! -
FinalizeProvide the printed logo pattern can also be designed by us for free!
-
OrderObtain detailed technical data sheets with customized solutions. -
ProductionAfter confirming the correctness of the start of production -
ProofingConfirm with the customer after making the sample -
ShipmentWait for the transaction to be completed
