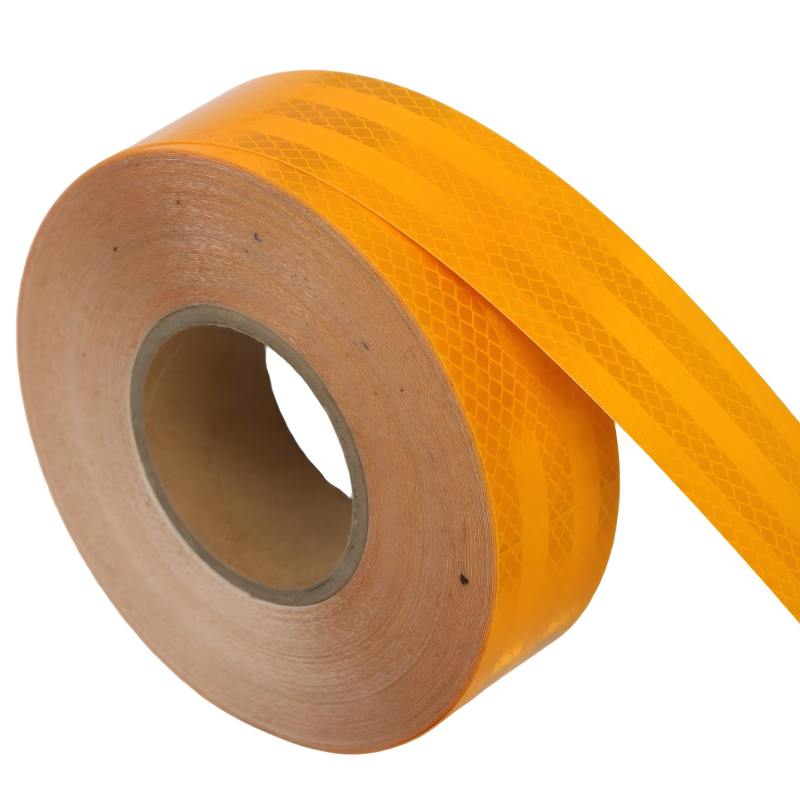

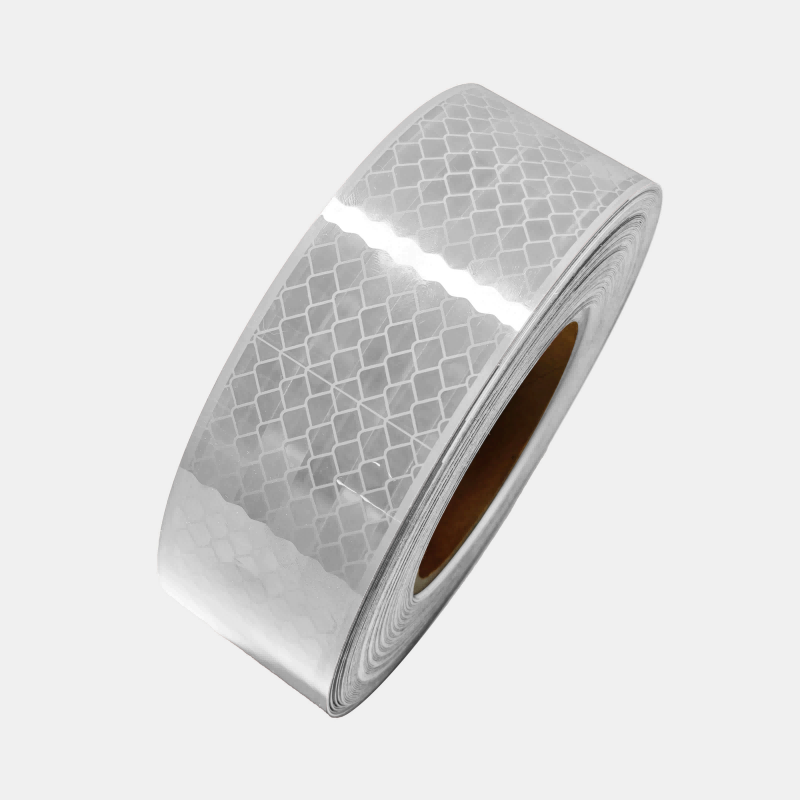

DMCT1700 DOT-C2 Conspicuity Marking Tape (1)(1).png

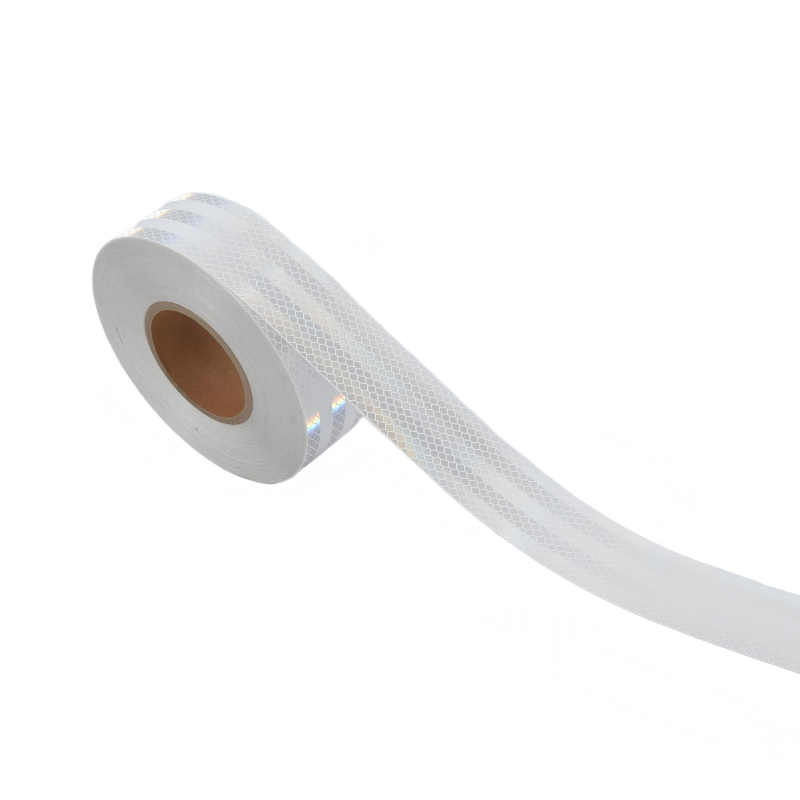

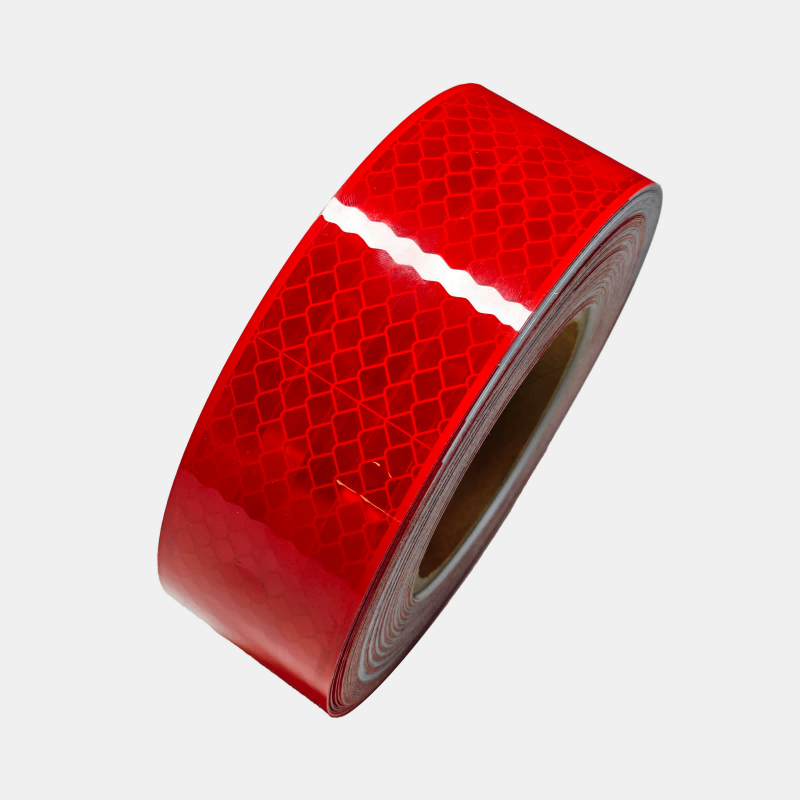

DMCT1700 DOT-C2 Conspicuity Marking Tape (2)(1).png

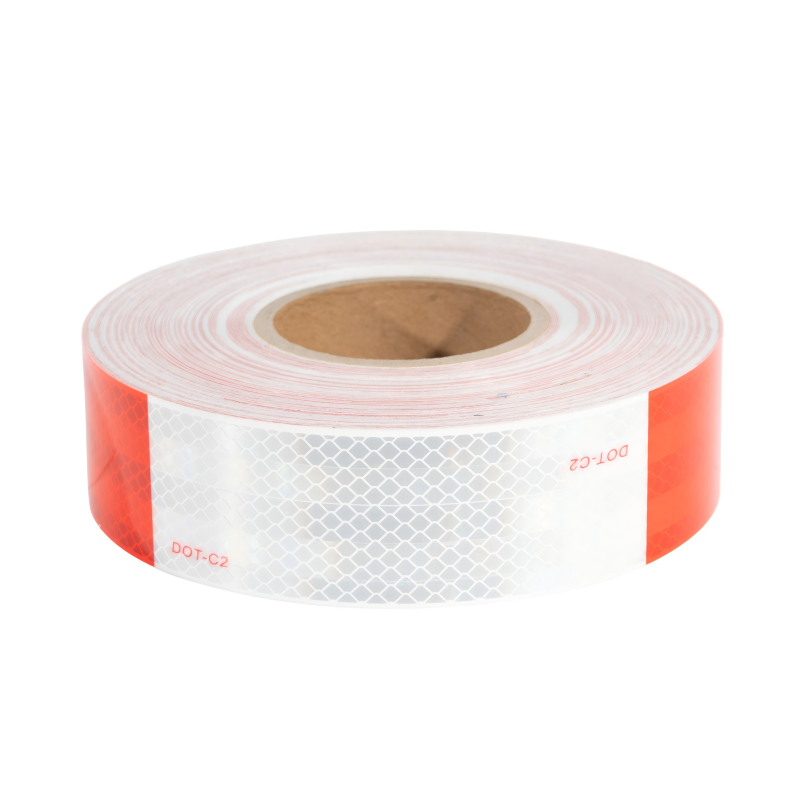

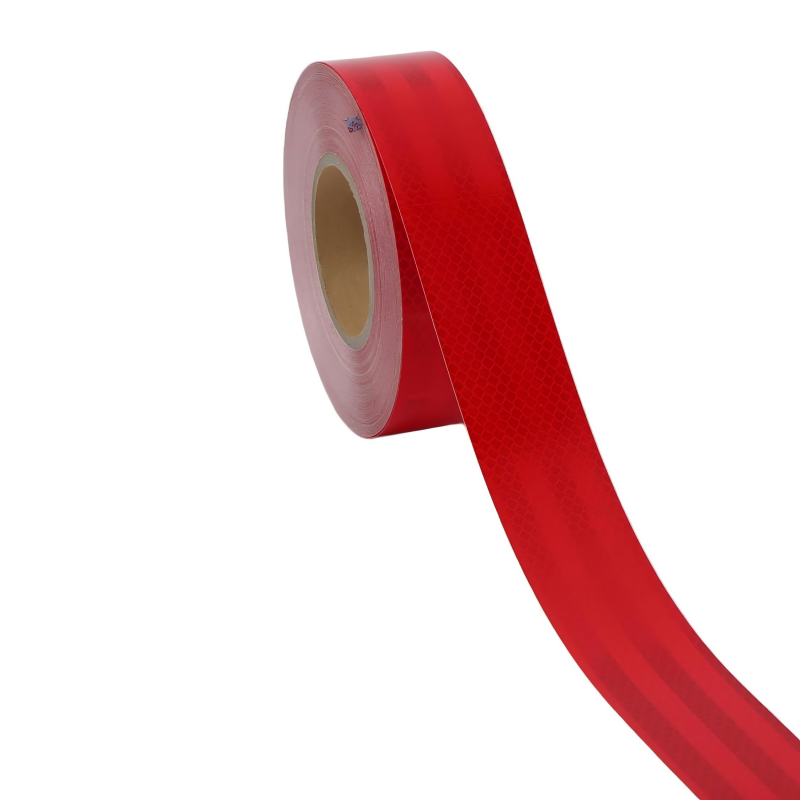

DMCT1700 DOT-C2 Conspicuity Marking Tape (3)(1).png

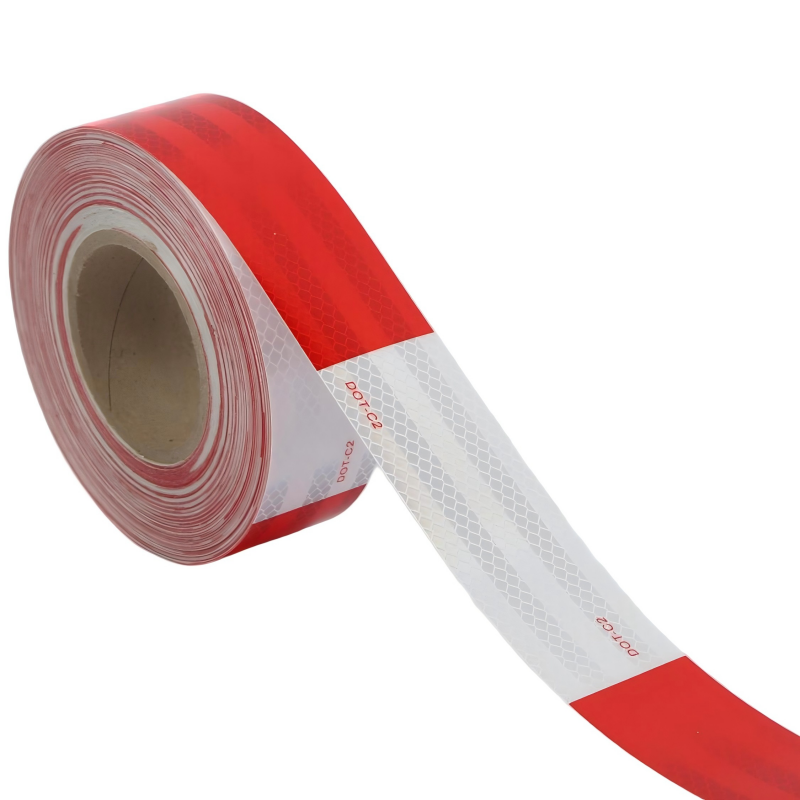

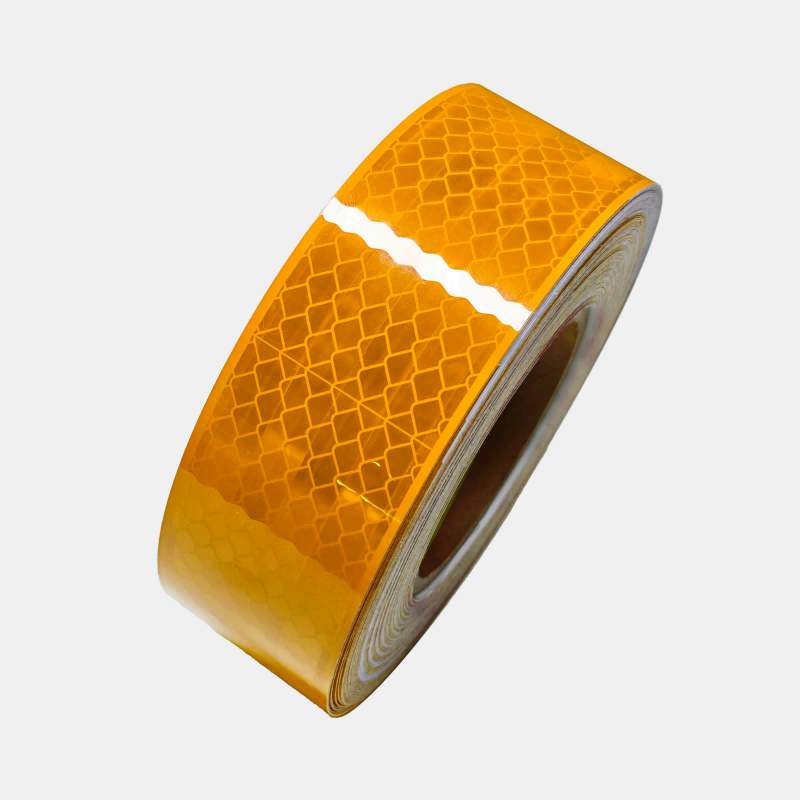

DMCT1700 DOT-C2 Conspicuity Marking Tape (4)(1).png

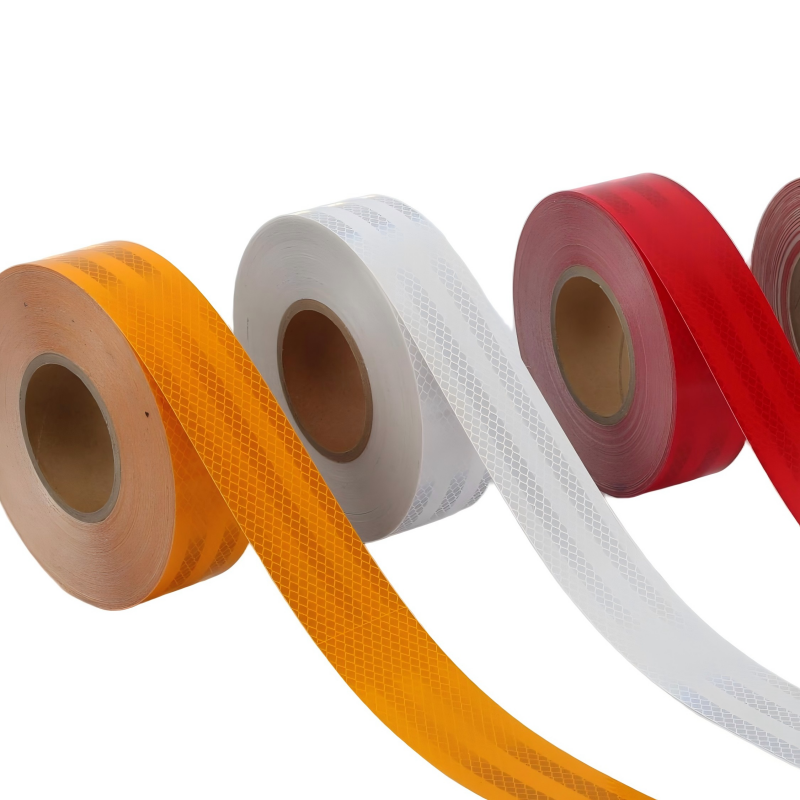

DMCT1700 DOT-C2 Conspicuity Marking Tape (5)(1).png

Reflective Thread-1

DMCT1700 Conspicuity Marking Tape Series is a non-metalized microprismatic reflective sheeting.The product is designed to use on the trucks,trailers and other heavy and long vehicles that require a long-term durability.It can significantly enhance nighttime visibility and recognition,thus ensuring road safety.DMCT1700 fully complies with the DOT-C2 certification under the FMVSS 108 Standard.It mainly serves the American region,including the United States, Brazil, Colombia, Peru, etc.The reflective marking tape consists of a PMMA surface layer combined with an encapsulated micro prismatic structure.Its backing features a pressure-sensitive adhesive layer protected by a clear release liner. Utilizing the principle of total internal reflection ,the product delivers outstanding retroreflective performance and excellent weather resistance.

Model：	Structure:
DMCT1700	PMMA surface layer combined with an encapsulated micro prismatic structure
Durability:	Size：
7 years	50mm45.7m/roll、50mm50m/roll
Color：	Application:
white 6”+ red 6”, white 7”+ red 11”	trucks,trailers,other heavy and long vehicles etc.
Certified:
FMVSS 108

SEND INQUIRY

Details

Features

Features

1. Fully complies with the DOT-C2 certification under the FMVSS108 Standard.

2. Superior retroreflective performance

Effectively reducing accident and enhancing driving safety.

3. The encapsulated microprismatic structure without metalizeing appears more vivid in daylight.

4. Exceptional weather resistance

Guaranteed 7 years service life, resistant to most solvents, waterproof and delamination,

Its backing features a pressure-sensitive adhesive layer protected by a clear release liner. Utilizing the principle of total internal reflection ,the product delivers outstanding retroreflective performance and excellent weather resistance.

Related Products List

Product Model

Product Name

Specification

Color

Processing

DM9600

ECE Conspicuity

Marking tape

50mm*50m

Yellow,White,Red

DM9300

DOT-C2 Conspicuity

Marking tape

50mm*45.7m

white 6”+ red 6”,

white 7”+ red 11”

Wide Applications

trucks,trailers,other heavy and long vehicles etc.

Truck

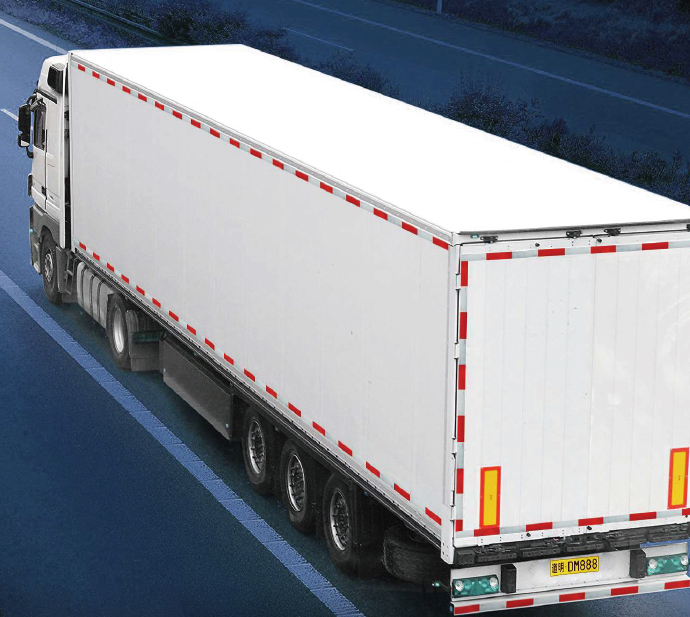

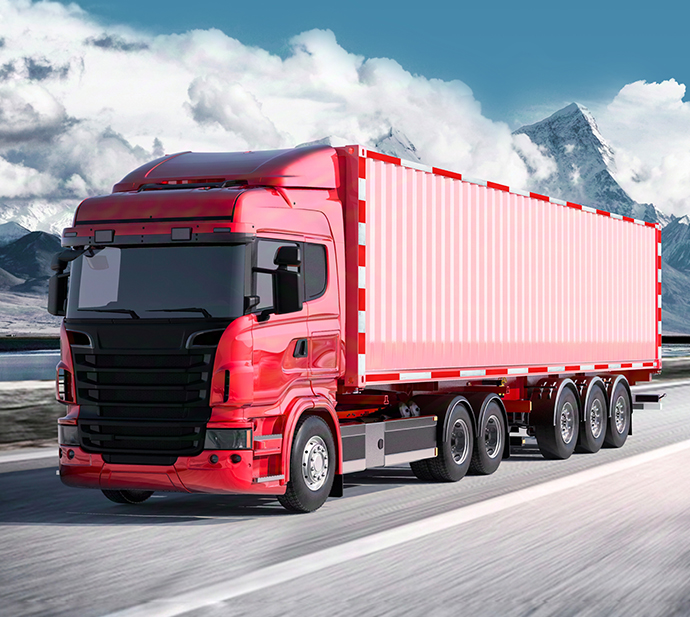

Truck2

How to identify DM9600,DM9300&DMCT1700?

DM9600

- Embedded lantern pattern
- Single color (only white/yellow/red)
- Two types(segmented tape/rigid tape)

DMCT1700

- Embedded diamond pattern
- Alternating red & white colors
- Displays alternating light-dark strips by changing the viewing angle

DM9300

- Embedded Hexagonal pattern
- Alternating red & white colors

// DM // Product Use Tips

01 /

How to assure proper adhesive bonding?

Material must be applied when the air and surface temperature is between 15°C and 38°C to assure proper adhesive bonding. Surfaces must be cleaned for all grease, oil and dirt. Use a clean towel and Isopropyl alcohol or similar to wipe the surface before application. If any air bubbles are trapped, use a pin to puncture the bubble and squeegee to push the air towards the pin hole.

02 /

How to perform maintenance and cleaning?

Hand wash with sponge, cloth, or soft brush using warm water and detergent. The cleaner must be wet, non-abrasive, without strong solvents and have a pH value between 3 and 11 (neither strongly acidic nor strongly alkaline). Rinse thoroughly.To remove grease, oil. or tar, use cloth moistened with heptane, VM&P naptha or mineral spirits. Wash with detergent and water then rinse thoroughly. Using high pressure cleaning equipment, the following conditions should be applied:
• Maximum pressure 80 bar
• Maximum temperature 60°C
• Minimum of 1 metre distance of cleaning jet from sheeting surface
• Cleaning wand to be held at no greater angle than 15 degree from perpendicular to the sheeting surface
• Wide spray pattern

03 /

How to properly store the product?

Store the tape in a clean ,dry area without direct sunlight.Maintain storage temperature between 65-75°F (18-24°C) with humidity between 30-50%.Store rolls horizontally in carton or in original packaging .
