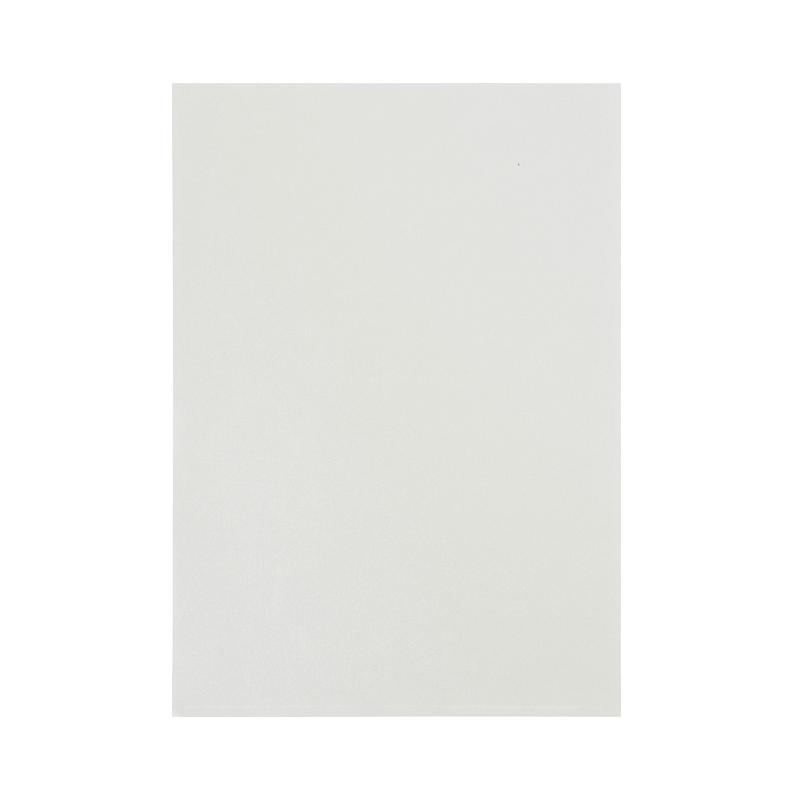

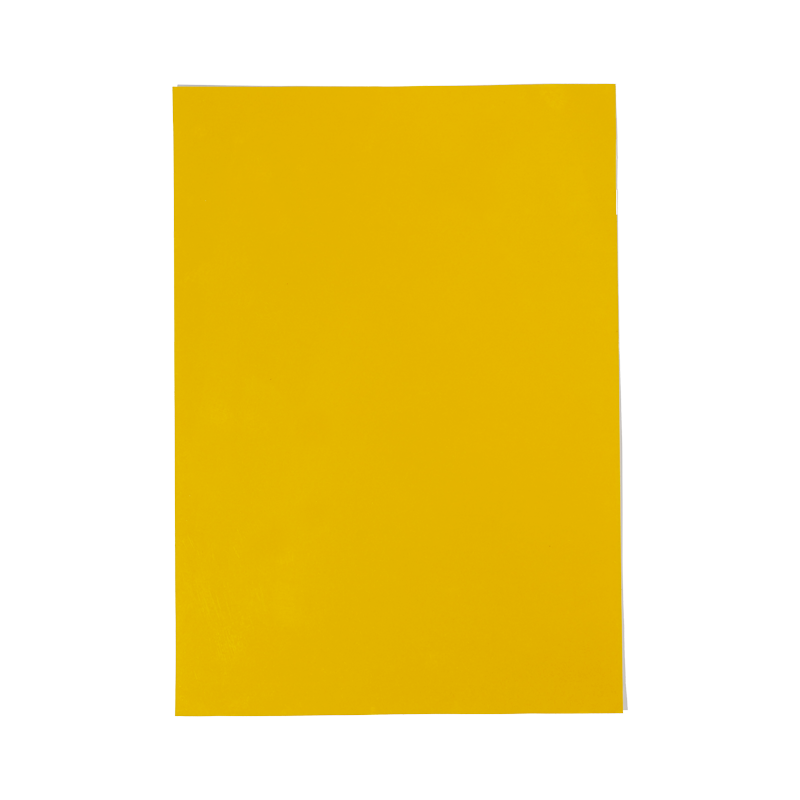

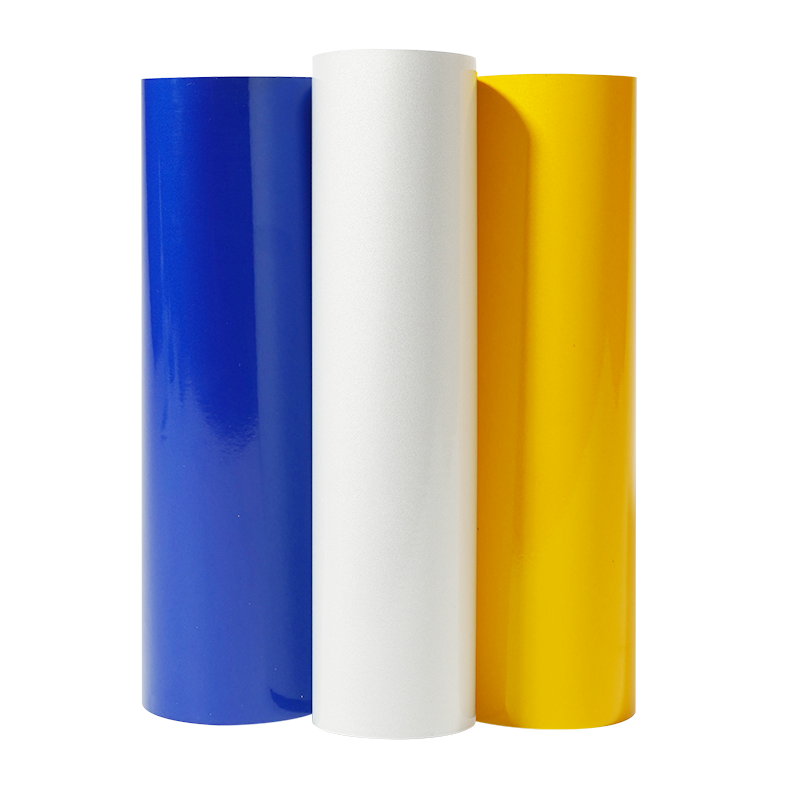

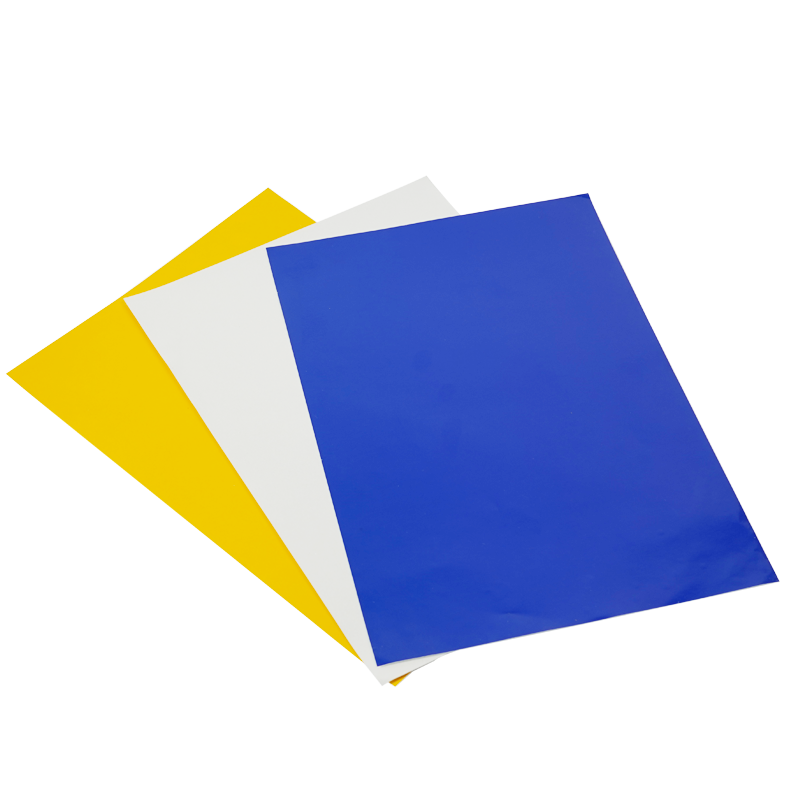

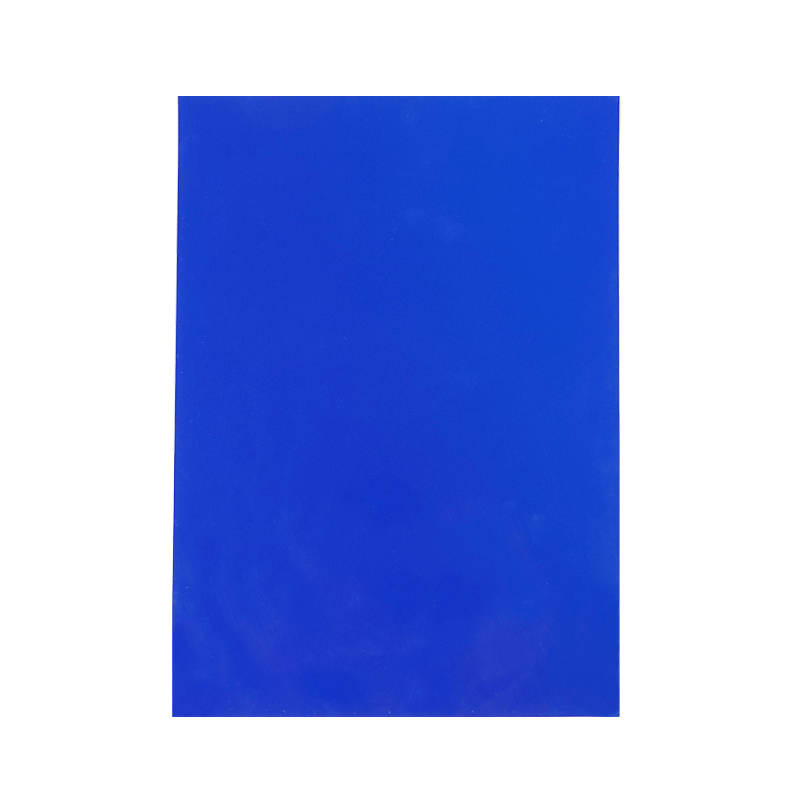

DM8300A Vehicle making reflective film

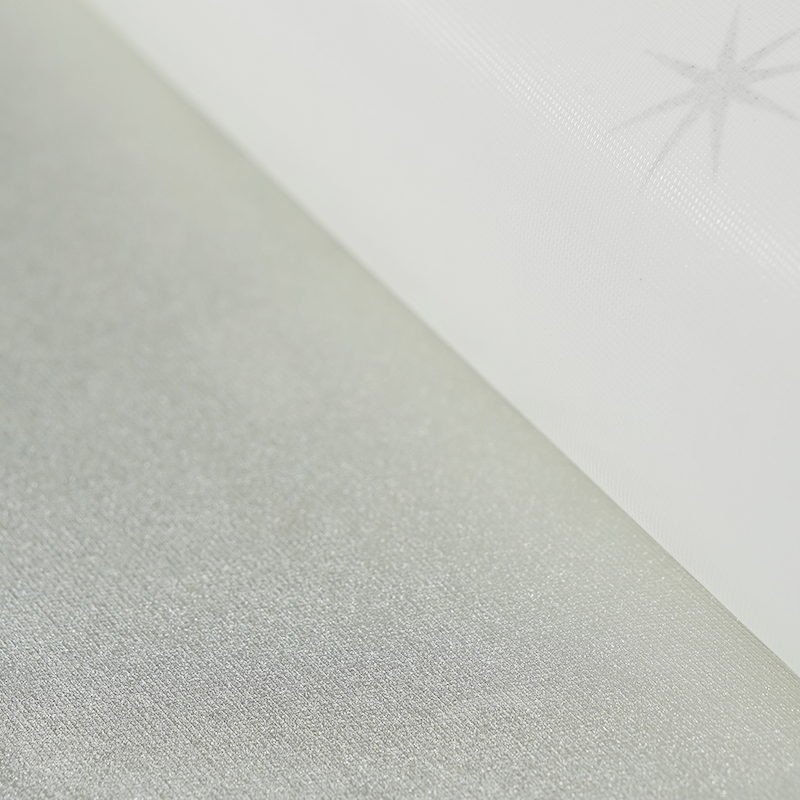

The DM8300A reflective film is a durable, flexible, impact-resistant, and peelable microbead-embedded reflective film. This product uses a double-plastic single-silicone release liner with air channels, which better eliminates air and residual solvents during application, reducing the likelihood of air bubbles. It is a high-performance embedded glass bead retroreflective film designed for vehicle color changes, fleet markings, commercial advertising, and other outdoor applications. The film uses a cast PVC structure, exhibiting excellent flexibility, peelability, and long-term outdoor durability, with a service life of up to 5 years under normal outdoor conditions, meeting UN150 E performance requirements.

Product model	Surface Material
D8900A	PVC
Durability	Available size
5 years	1.24m*45.7m
Product color	Processing
White, Yellow, Orange, Red, Green, Blue, Brown, Black	Adhesive
Certified
UN150 Class E

SEND INQUIRY

Details

Features

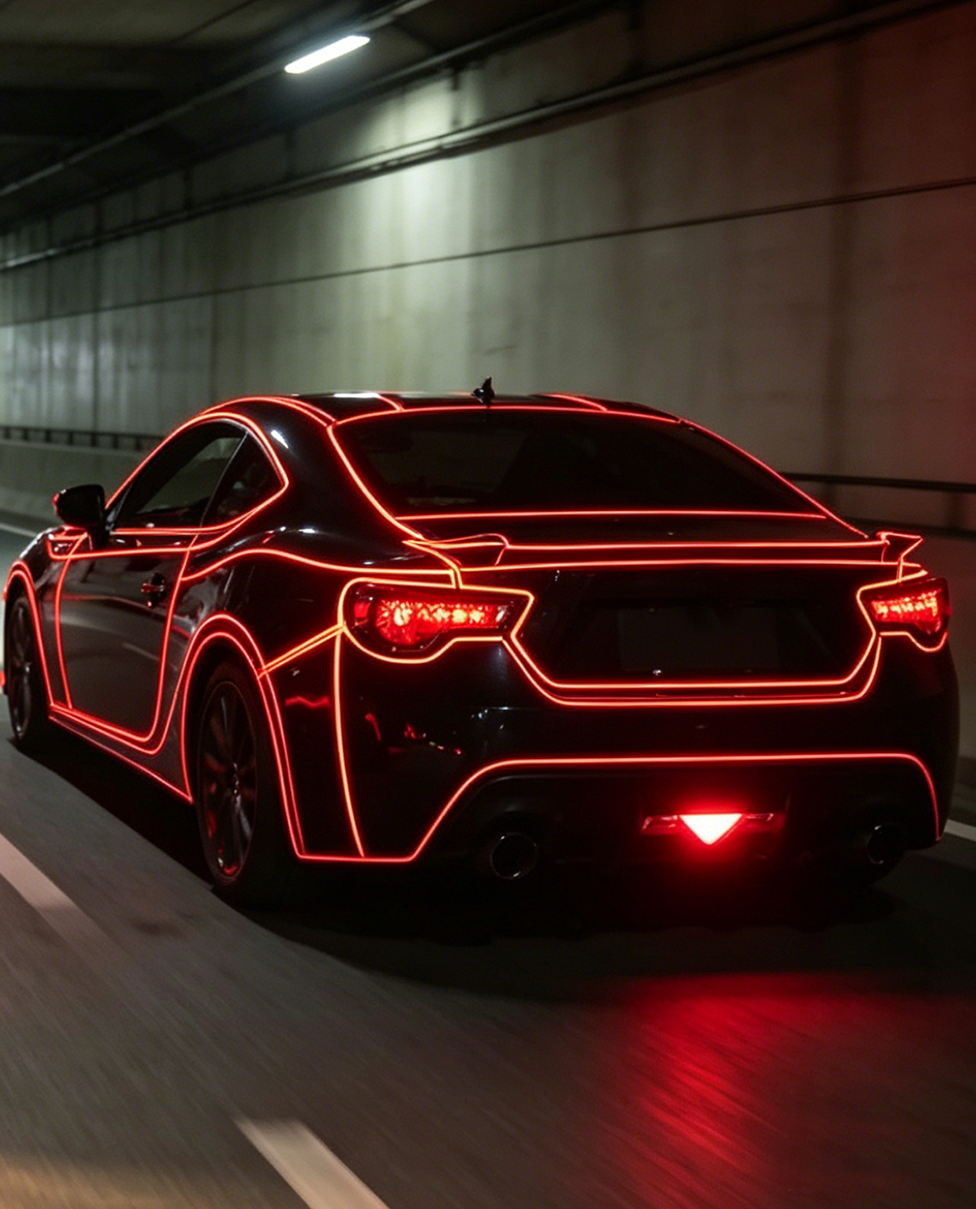

Features

1.Versatile Applications

DM8300A can be precisely cut into various reflective patterns.These markings are crucial and functions for vehicle safety and advertising purposes on a variety of vehicles, particularly suitable for emergency response vehicles and commercial promotional vehicles .

2.Combining high reflectivity with non-destructive vehicle transformation

DM8300A graphic film not only provides reflective properties but also enable full vehicle transformation with a renewed appearance. Unlike traditional methods,this non-destructive solution preserves the vehicle’s original paint integrity during color changes.Additionally,the film serves as protection, guarding against UV rays and acid rain, thereby extending the service life of vehicle original paint.

Easy to operate

This product uses release paper with air guide grooves, which can effectively expel air and residual solvent during installation, significantly reducing the generation of bubbles.

4.Printable

The film demonstrates excellent compatibility with multiple printing processes,including screen printing, digital printing and UV printing.

5.Removable

It can be easily removed without any adhesive residue.

DM8300A Wide Applications:Trucks, ambulances, construction vehicles, emergency response vehicles and commercial promotional vehicles etc.

Related Products List

Product Model	Product Name	Specification	Color	Processing
DMV9000	Flexible reflective film for special vehicles	1.22m*45.72m	white, yellow, orange, red, green, blue,	Adhesive

Wide Applications

Trucks, ambulances, construction vehicles, emergency response vehicles, and commercial advertising vehicles, etc.

Vehicle making reflective Plate 1

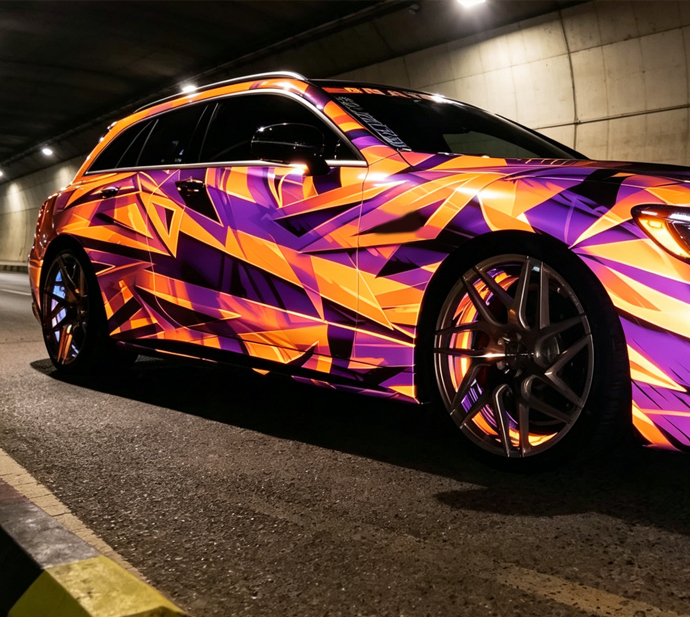

Vehicle making reflective Plate 2

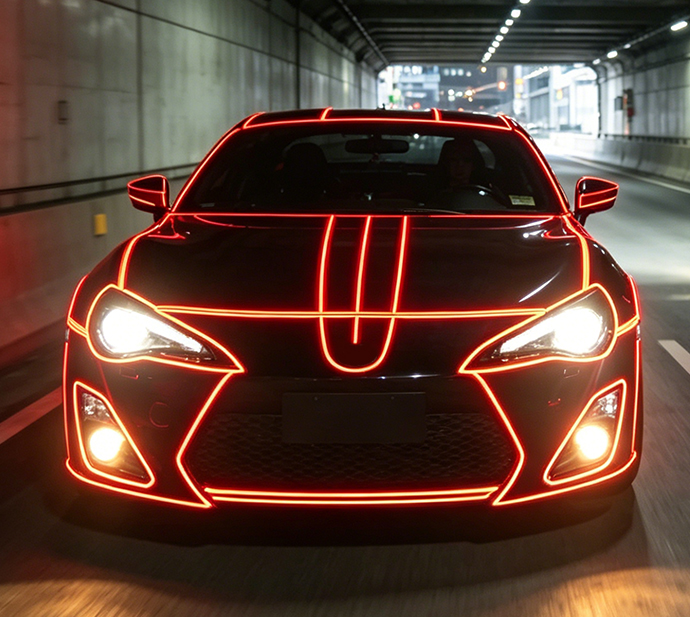

Vehicle making reflective Plate 3

Vehicle making reflective Plate 4

Distinguish

How to identify DM8900A,DMV9000?

The DM8300A has a plain surface, while the DMV9000 has a patterned surface.

// DM // Product Use Tips

01 /

How To Perfectly Fit Complex Surfaces?

DM8300A series flexible film is suitable for simple curves. For complex curves,a segmented installation process is recommended to avoid over stressing the material. Additionally,all edges and corners must undergo rounded treatment to improve the appearance of the kit and effectively reduce the risk of edge lifting while jet washing.The ambient temperature must match the vehicle surface temperature and be maintained between 60°F and 100°F (15°C and 38°C)during installation.It is recommended that applied DM8300A flexible film within this temperature range for at least 2 hours after application.

02 /

How to store the product correctly?

The DM8300A series products can be stored for one year from the date of purchase under conditions of temperature ranging from 18-24°C (64-75°F) and relative humidity of 45-55%. The film must be used within this one-year period. It should be stored in its original packaging or hung vertically through the roll core. A spacer should be placed between the sheets to avoid direct contact.
