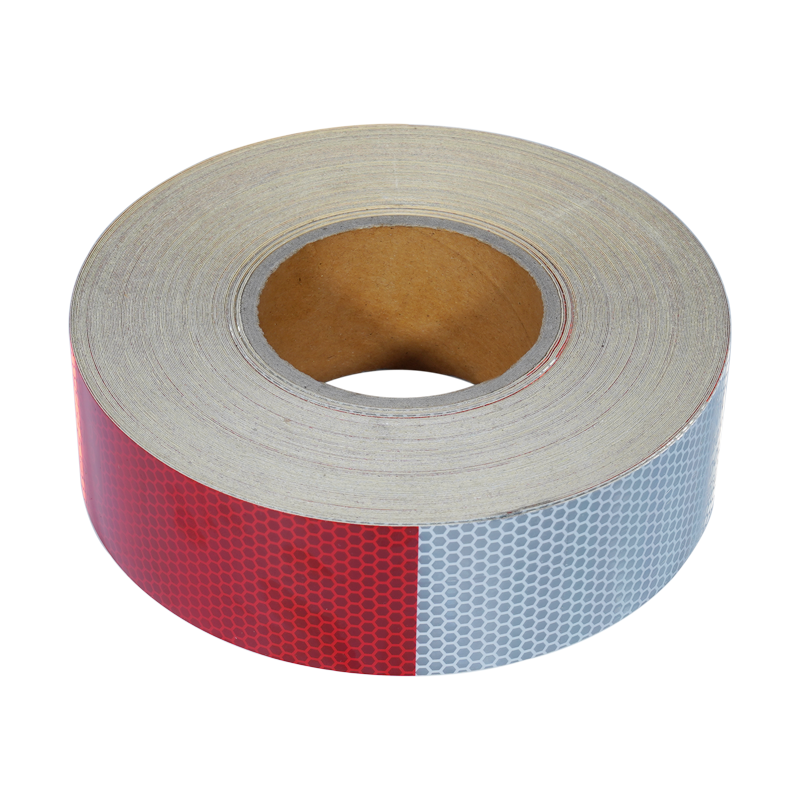

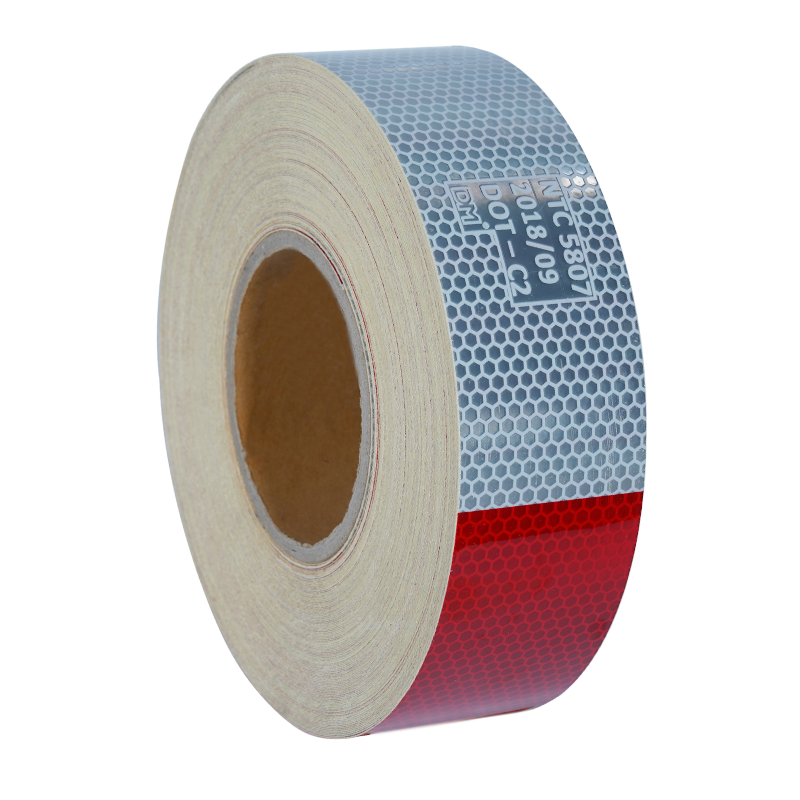

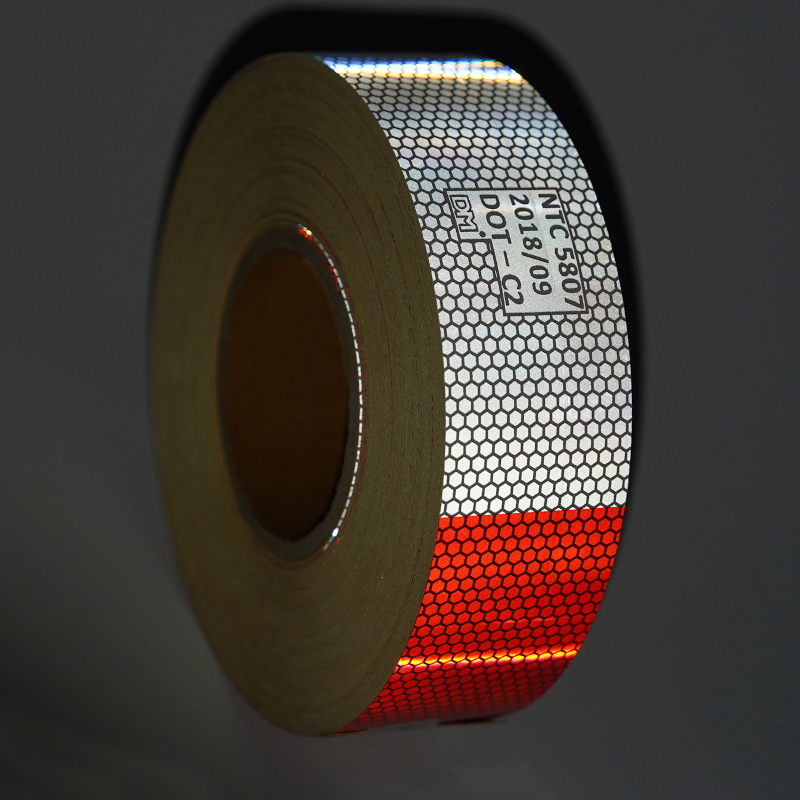

DM9300 NTC 5807 Conspicuity Tape for Colombia

DM9300 is a high-performance microprismatic retroreflective tape for rugged outdoor applications, and a top seller in Colombia. Used on trucks, trailers, towed units and other heavy/long vehicles, it enhances nighttime visibility with excellent retroreflectivity and strong weather resistance. This tape has a single metallized layer (no edge sealing), a clear resin substrate with microprismatic lenses, and a PMMA overlay that ensures over 7 years of durability.

Model：	Structure:
DM9300	PMMA and metalized layer
Durability:	Size：
7 years	50mm*45.7m
Color：	Application:
white 6”+ red 6”, white 7”+ red 11”	trucks, trailers, towed units and other heavy/long vehicles

SEND INQUIRY

Details

Features

Features

1、Superior retroreflective performance

Boasting a fully sealed microprismatic design, its surface is coated with an aluminized reflective layer and direct pressure-sensitive adhesive, eliminating air gaps. This ensures exceptional nighttime brightness, clearly defining the vehicle outline at 100 meters and enhancing nighttime visibility by 300%.

2、Tough and Durable

Constructed with a highly transparent, weather-resistant top layer, it withstands thermal cycling from -40°C to 70°C without cracking or softening, even in extreme climates. It has passed a 2,000-hour xenon arc aging test. Both the pressure-sensitive adhesive and top layer offer excellent resistance to fuel, pesticides, and de-icing salt.

3、Customizable for All Vehicles

Supports size cutting and custom silk-screening (logos/warnings), fitting all vehicle models for logistics, dangerous goods and school bus use.

Supports size cutting and custom silk-screening (logos/warnings), fitting all vehicle models for logistics, dangerous goods and school bus use.

Related Products List

Product Model	Product Name	Specification	Color	Durability
DM9600	ECE Tape	5cm*50m	white, yellow, red,	7 years
DM9300	Conspicuity Marking Tape	5cm*50m	red, red-white	7 years
DMCT1700	Conspicuity Marking Tape	5cm*50m	white, yellow, red, red-white, and fluorescent yellow-green	7 years

Wide Applications

This product is suitable for all goods vehicles (including tri-wheelers, low-speed goods vehicles, and cargo-carrying vehicles), trailers, towed units, and other heavy or long vehicles. It is widely applicable to the rear and sides of such vehicles.

other heavy

Trucks

Trucks2

How to identify DM9600,DM9300&DMCT1700?

DM9600

- Embedded lantern pattern
- Single color (only white/yellow/red)
- Two types(segmented tape/rigid tape)

DMCT1700

- Embedded diamond pattern
- Alternating red & white colors
- Displays alternating light-dark strips by changing the viewing angle

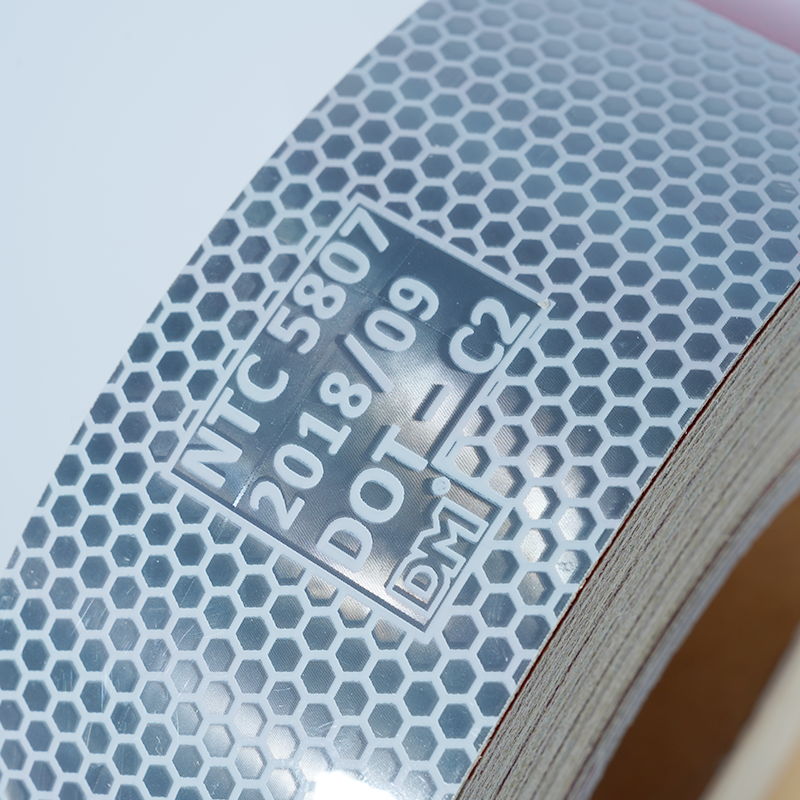

DM9300

- Embedded Hexagonal pattern
- Alternating red & white colors

// DM // Product Use Tips

01 /

Instructions for use

Apply when air and surface temperature is 15–38°C. Before application, clean surface grease, oil and dust with a clean towel dipped in methanol or a similar cleaner. If bubbles form, puncture with a pin and squeegee air out toward the hole.

02 /

Maintenance and Cleaning

Hand wash with sponge, cloth, or soft brush using warm water and detergent. The cleaner must be wet, non-abrasive, without strong solvents and have a PH value between 3 and 11 (neither strongly acidic nor strongly alkaline). Rinse thoroughly.
To remove grease, oil or tar, use cloth moistened with heptane, VM&P naptha or mineral spirits. Wash with detergent and water then rinse thoroughly. Using high pressure cleaning equipment, the following conditions should be applied:
①Maximum pressure 80 bar
②Maximum temperature 60°C
③Minimum of 1 metre distance of cleaning jet from sheeting surface
Cleaning wand to be held at no greater angle than 15 degrees from perpendicular to the sheeting surface
⑤Wide spray pattern

03 /

Storage and Shelf Life

The combined shelf life as processed and unprocessed marking tapes cannot exceed 2 years from the date of receipt from DM. However, the tapes must be used within 1 year of processing even if the combined shelf life is less than 2 years.

DM Customization Process

Selection

Determine product model, color, quantity, price and delivery time. If there are other logo requirements, customization is available.
Order

After order signing, production initiates at once.
Proofing

Confirm with the customer after making the sample.
Production

Initiate mass production and promptly update the production status.
Shipment

Arrange shipment immediately after final acceptance is completed.
