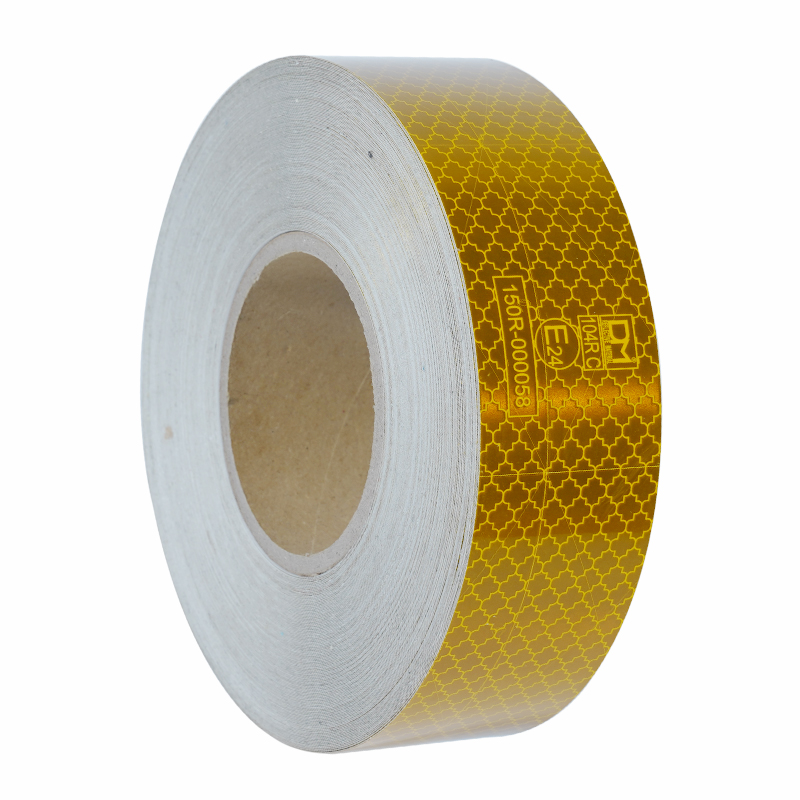

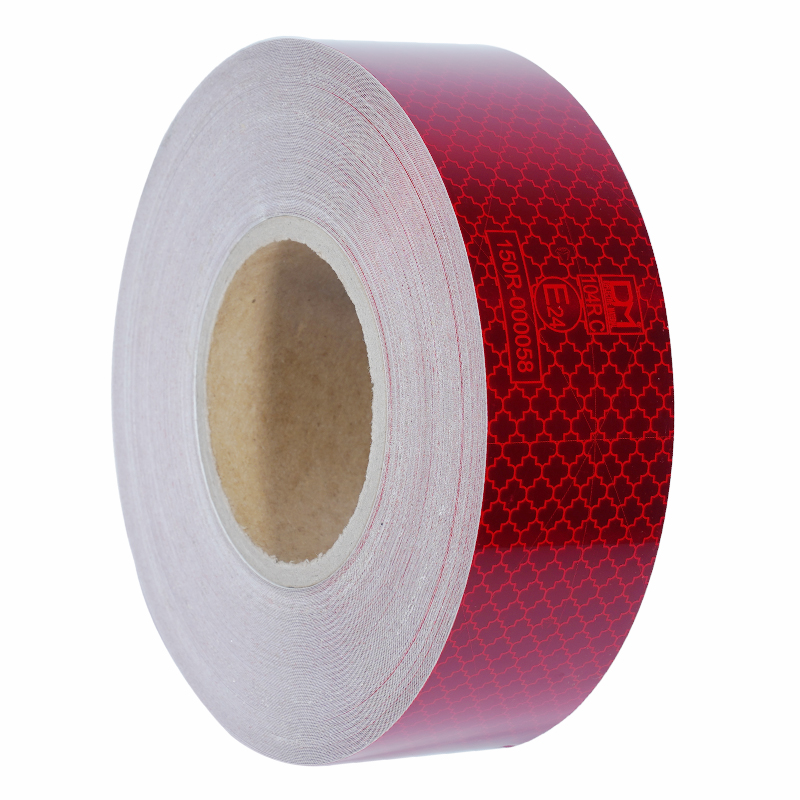

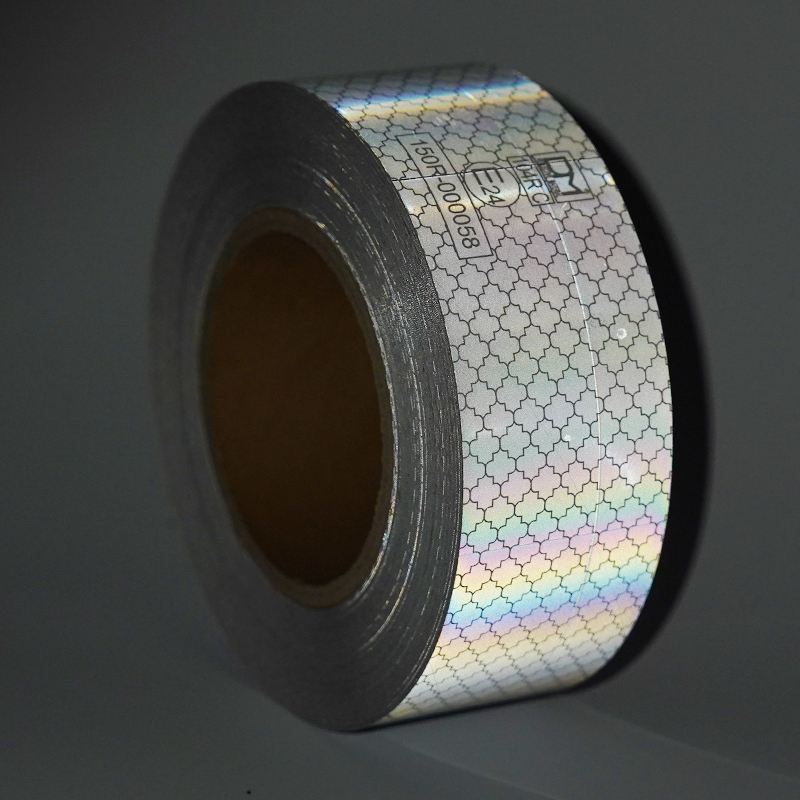

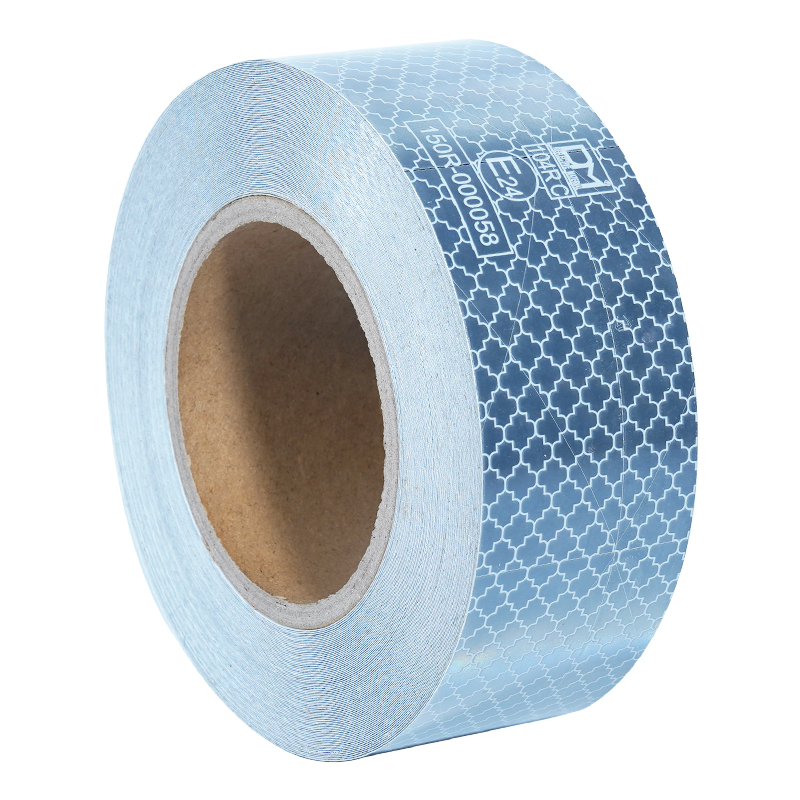

DM9600 ECE Rigid Conspicuity Marking Tape

DM9600 is a high-performance conspicuity marking tape launched by Daoming Optics. It uses reflective materials that meet the ECE 104 standard and has excellent weather resistance and retroreflective properties. The product is made through high-precision molding and aluminum plating processes to effectively prevent water seepage and delamination, ensuring good visibility in harsh environments. DM9600 is mainly used in large commercial vehicles such as trailers and trucks to enhance recognition at night or in low-light environments. It meets the strict requirements of the latest European ECE 104 regulations on visibility of vehicle markings and is an important configuration to improve road driving safety.

Model

Processing:

D9600

Adhesive

Certified:

Product specifications

UN150 Class C

50mm*50m

Color

Yellow,White,Red

SEND INQUIRYDM_20250418165110_001
  • iso9001-2
  • iso9001-4
  • iso9001-1

Features

1.1Superior retroreflective performance Effectively reducing accident and enhancing driving safety
DM9600 conspicuity marking tape complies with the minimum reflectivity requirements of Regulation UN150 Class C.When illuminated with CIE standard illuminant A and measured with the provisions of CIE No. 54, the coefficient of retrore-flection for DM9600 conspicuity marking tape is not less than the values in Table as below:
2.Easy to use
Easy to stick, easy to cut, no edge sealing required.The adhesive is protected by a release paper, which shall be removed by peeling, without soaking in water or other solvents.
3.Single-layer construction and no edge sealing required
4.Exceptional weather resistance
Guaranteed 7 years service life, outstanding impact resistance, resistant to most solvents, waterproof and delamination, withstands high-pressure power washing .
Contact us
特点右侧图976-1209

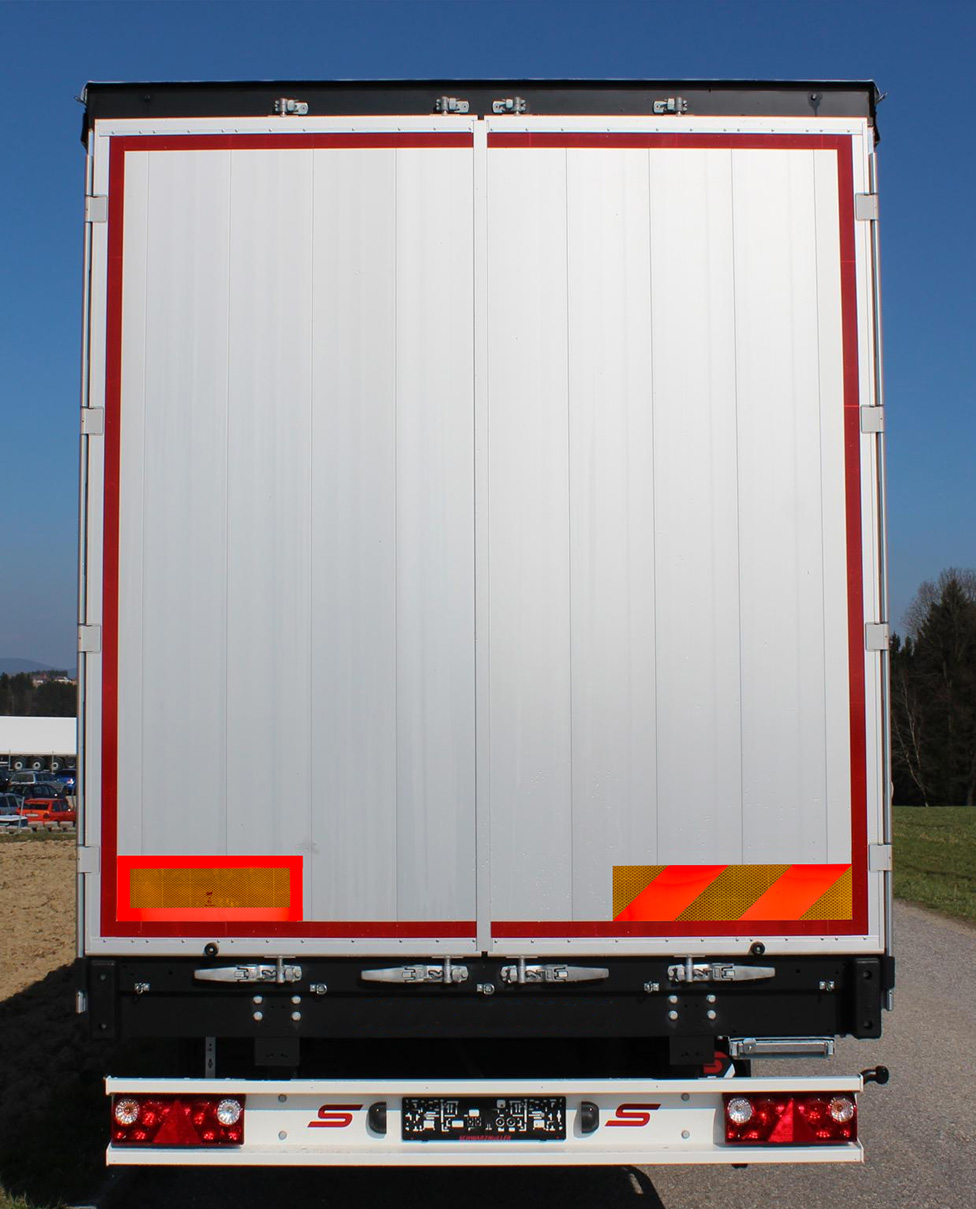

DM9600 conspicuity marking tape is approved to Regulation UN150 Class C. It can be applied to trucks, trailers, other heavy and long vehicles etc.

Related Products List

Product Model

Product Name

Specification

Color

Processing

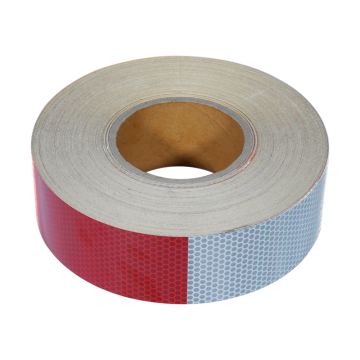

DM9300

DOT-C2 conspicuity marking tape

5cm*45.7m

Red&White

Adhesive

DMCT1700

ECE conspicuity marking tape

50mm*50m

White、Yellow、Red

Adhesive

DMCT1700

DOT-C2 conspicuity marking tape

50mm*45.7m

50mm*50m



White6”+Red6”

White7”+Red11”

Adhesive

Wide Applications

trucks,trailers,other heavy and long vehicles etc.

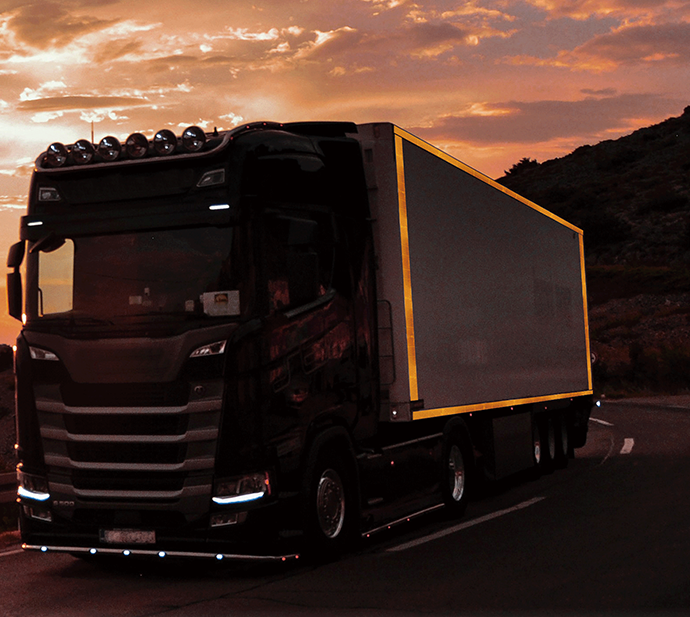

Conspicuity Marking Tape1

Conspicuity Marking Tape1

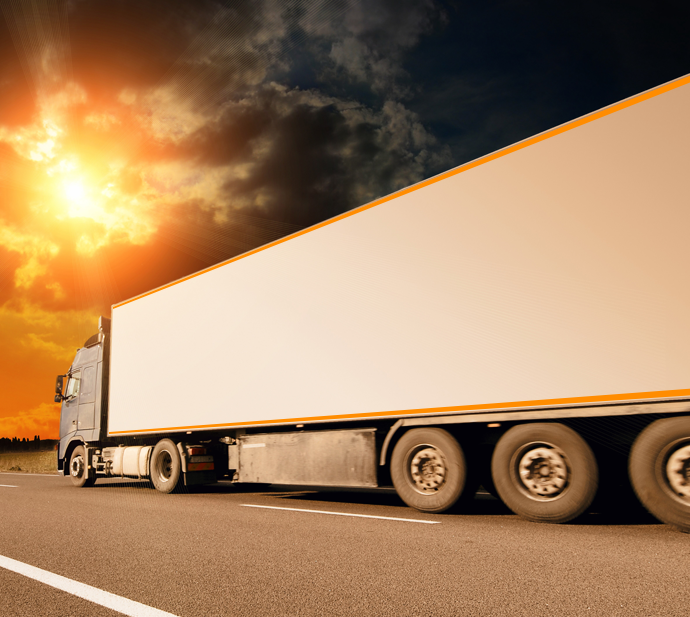

Conspicuity Marking Tape2

Conspicuity Marking Tape2

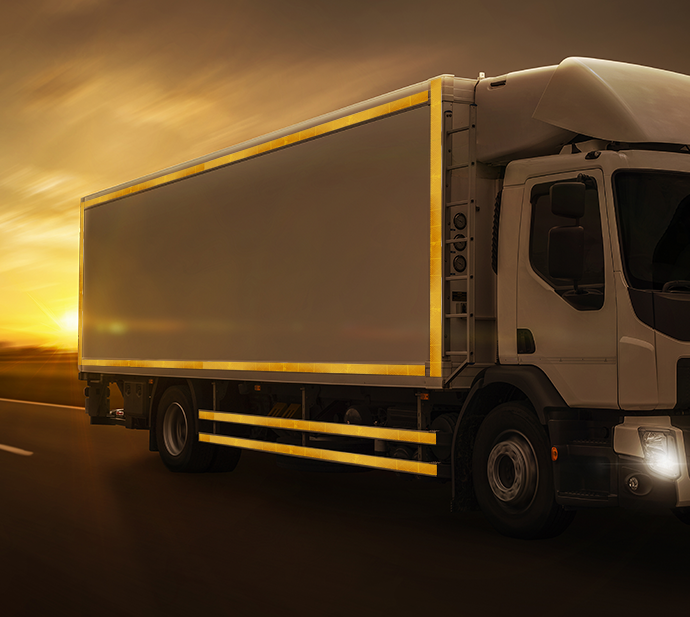

Conspicuity Marking Tape3

Conspicuity Marking Tape3

01

How to identify DM9600,DM9300&DMCT1700?

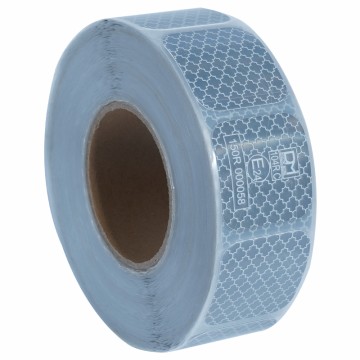

DM9600

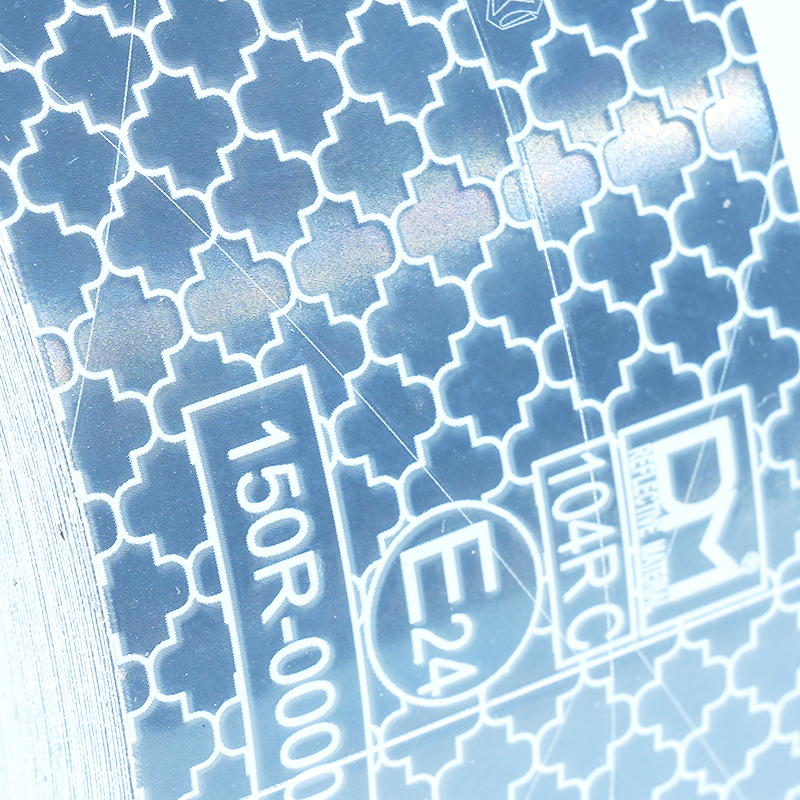

- Embedded lantern pattern
- Single color (only white/yellow/red)
- Two types(segmented tape/rigid tape)

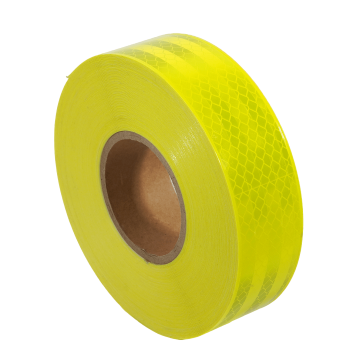

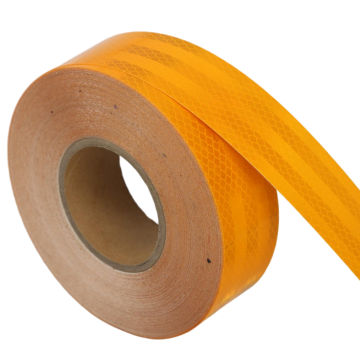

DMCT1700

- Embedded diamond pattern
- Alternating red & white colors
- Displays alternating light-dark strips by changing the viewing angle
DM9300

- Embedded Hexagonal pattern
- Alternating red & white colors

// DM // Product Use Tips

01 /

1.How To Assure Proper Adhesive Bonding?

Material must be applied when the air and surface temperature is between 15°C and 38°C to assure proper adhesive bonding. Surfaces must be cleaned for all grease, oil and dirt. Use a clean towel and Isopropyl alcohol or similar to wipe the surface before application. If any air bubbles are trapped, use a pin to puncture the bubble and squeegee to push the air towards the pin hole.
02 /

2.How To Perform Maintenance And Cleaning?

Hand wash with sponge, cloth, or soft brush using warm water and detergent. The cleaner must be wet, non-abrasive, without strong solvents and have a pH value between 3 and 11 (neither strongly acidic nor strongly alkaline). Rinse thoroughly.To remove grease, oil. or tar, use cloth moistened with heptane, VM&P naptha or mineral spirits. Wash with detergent and water then rinse thoroughly. Using high pressure cleaning equipment, the following conditions should be applied:
• Maximum pressure 80 bar
• Maximum temperature 60°C
• Minimum of 1 metre distance of cleaning jet from sheeting surface
• Cleaning wand to be held at no greater angle than 15 degree from perpendicular to the sheeting surface
• Wide spray pattern
03 /

3.How To Properly Store The Product?

Store the tape in a clean ,dry area without direct sunlight.Maintain storage temperature between 65-75°F (18-24°C) with humidity between 30-50%.Store rolls horizontally in carton or in original packaging .

DM Customization Process

  • project010221300a245b87d448b5569a3e52ee2e
    Selection
    Determine product model, color, quantity price and delivery time!
  • project010221300a245b87d448b5569a3e52ee2e
    Finalize
    Provide the printed logo pattern can also be designed by us for free!
  • project030221300a245b87d448b5569a3e52ee2e
    Order
    Obtain detailed technical data sheets with customized solutions.
  • project040221300a245b87d448b5569a3e52ee2e
    Production
    After confirming the correctness of the start of production
  • project050221300a245b87d448b5569a3e52ee2e
    Proofing
    Confirm with the customer after making the sample
  • project06
    Shipment
    Wait for the transaction to be completed
