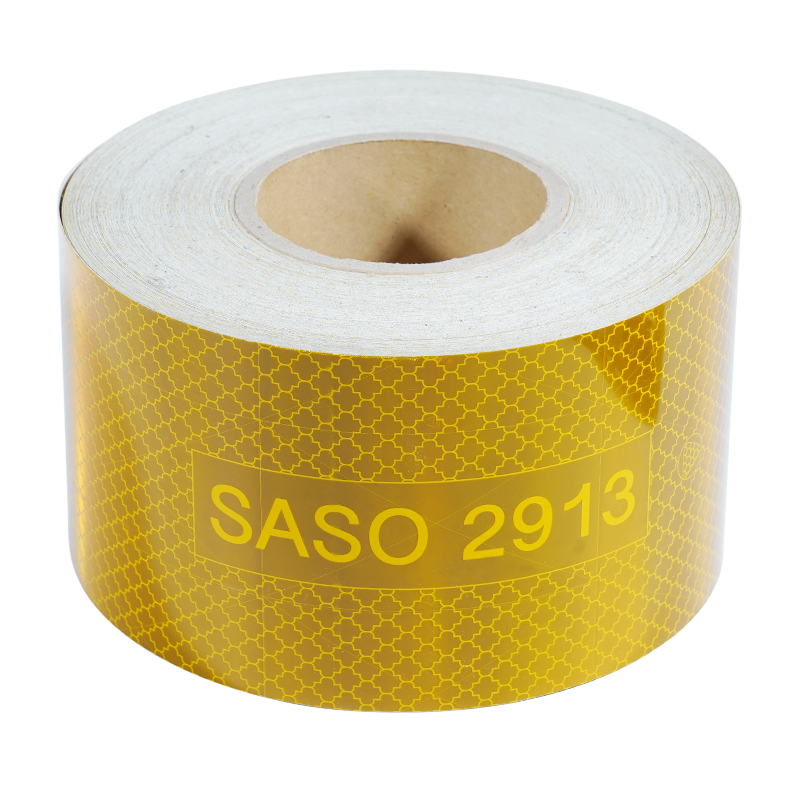

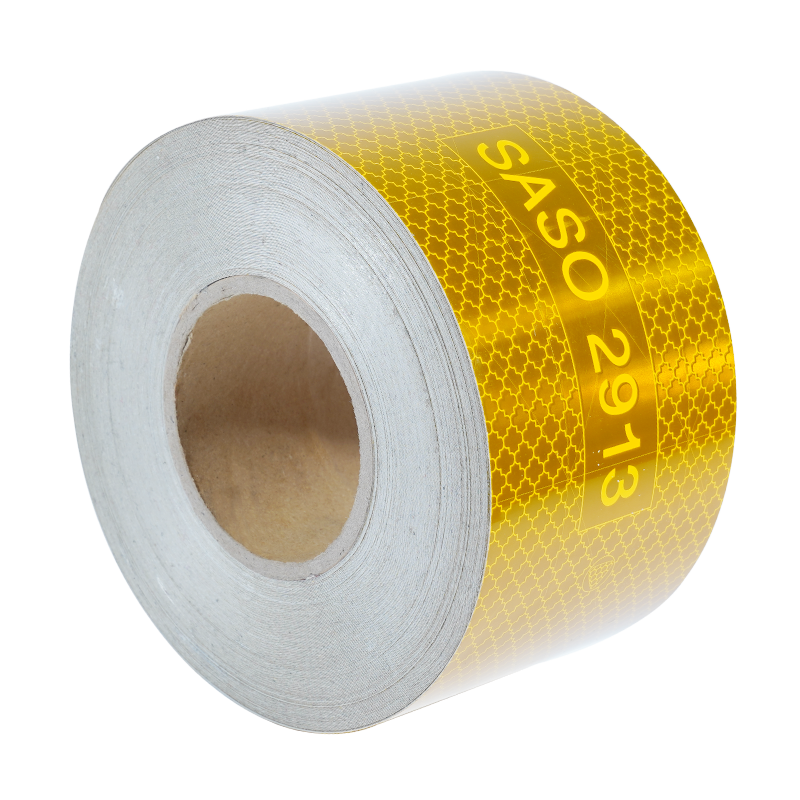

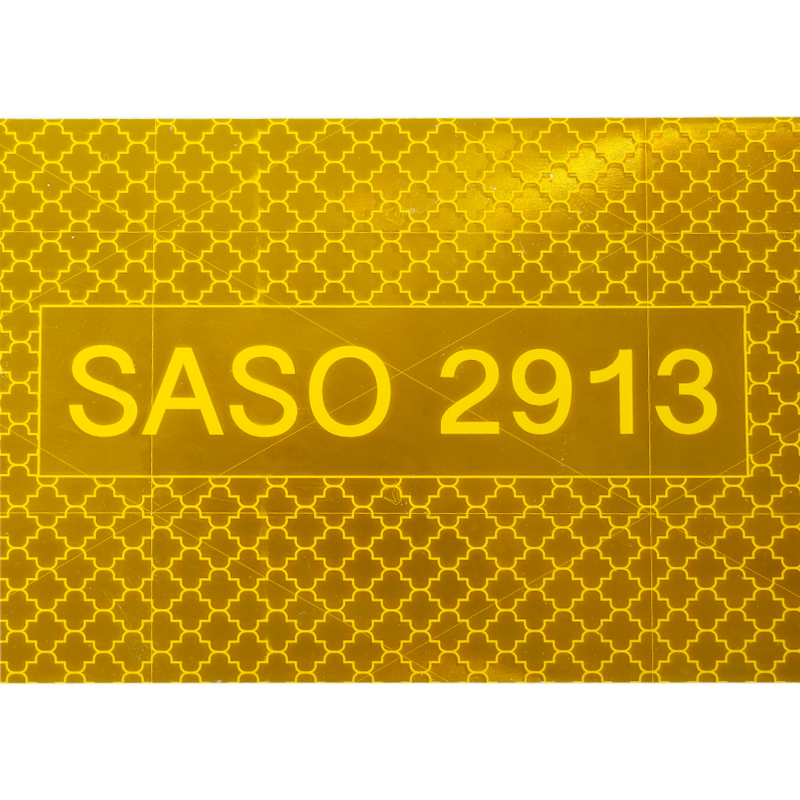

DM9600 SASO Conspicuity Marking Tape

DM9600 SASO Conspicuity Marking Tape is a high-performance conspicuity marking tape for large commercial vehicles. It is manufactured with high-precision molding and aluminum metallization processes, featuring a PMMA surface layer and a metalized reflective layer. The product provides excellent retroreflective performance, superior weather resistance, and strong resistance to water seepage and delamination, ensuring high visibility in harsh environments. DM9600 fully complies with SASO 2913 and ECE R150 requirements and is widely used on trailers, trucks, and other heavy vehicles to enhance nighttime and low-light visibility and improve road safety.

Model：	Surface：
DM9600	PMMA
Durability:	Product specifications：
7 years	5cm*50m
Color：	Processing:
Yellow, White, Red	Aluminized
Certified:
ECE 150R, SASO 2913

SEND INQUIRY

Details

Features

Features

High Visibility

Fully complies with ECE R150 and SASO 2913 standards.DM9600 delivers superior retroreflective performance, exceeding industry average levels. It clearly outlines vehicle contours at night or in low-light conditions and significantly increases visible distance while maintaining wide-angle visibility.

Durable & Weather Resistant

Designed with a high-weather-resistant PMMA surface and special adhesive formulation, DM9600 maintains stable performance in extreme temperatures from −40°C to 80°C. It is resistant to UV exposure, acid rain, oil contamination, mechanical wear, and high-pressure power washing. The product is waterproof, anti-delamination, and guaranteed for up to 7 years of service life.

Single-Layer Construction & Easy Application

Single-layer prismatic film design with no edge sealing required. Easy to cut and apply, suitable for rigid surfaces, and capable of withstanding pressure washing, significantly improving installation efficiency.

Customization Supported

Supports custom cutting according to vehicle dimensions, silk-screen printing of logos or warning messages (such as “Hazardous Materials” or “School Bus”), and flexible solutions for different vehicle types. Combined applications can achieve comprehensive vehicle visibility enhancement.

Supports custom cutting according to vehicle dimensions, silk-screen printing of logos or warning messages (such as “Hazardous Materials” or “School Bus”), and flexible solutions for different vehicle types. Combined applications can achieve comprehensive vehicle visibility enhancement.

Related Products List

Product Model

Product Name

Specification

Color

DM9300

DOT-C2 conspicuity marking tape

5cm*45.7m

Red, White

DMCT1700

DOT-C2 conspicuity marking tape

5cm*45.7m, 5cm*50m

white 6”+ red 6”,

white 7”+ red 11”

Wide Applications

Heavy-duty Trucks
Semi-trailer Tractors
Trailers
Van-type Vehicles
Hazardous Chemical Transport Vehicles
School Buses
Engineering & Construction Site Vehicles

other heavy

Trucks

Trucks2

// DM // Product Use Tips

01 /

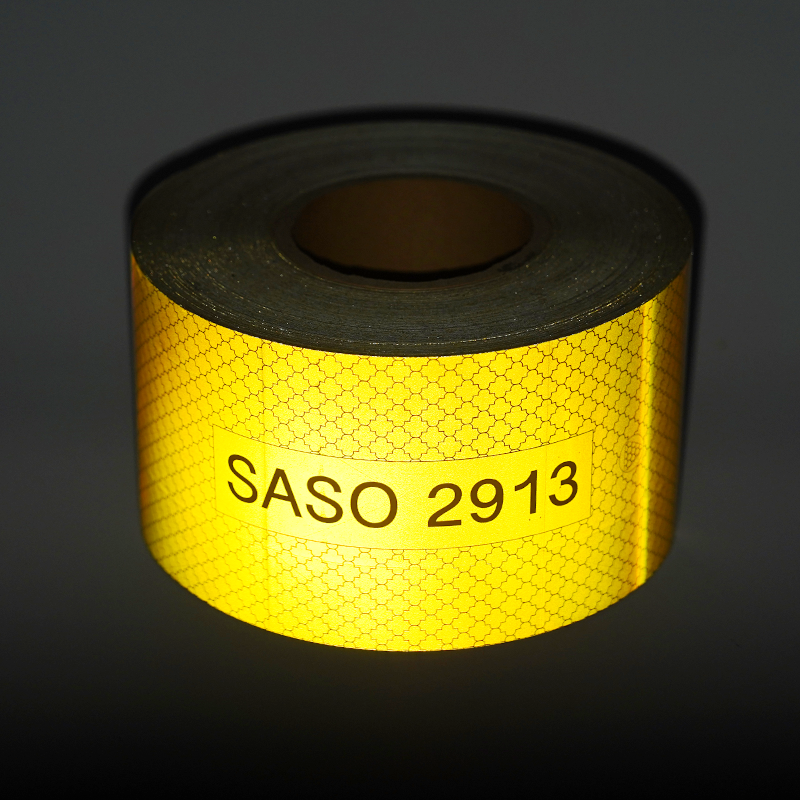

How to test the reflective effect?

1. Take pictures with a mobile phone at a distance of more than 3 meters in a dark environment.
2. Stand a flashlight at a height of more than 5 meters in the dark, with the flashlight shining at the tip of the nose to reflect light.
3.Conduct the test with a car at a distance of more than 20 meters in a dark environment.

02 /

How is the adhesion performance?

1. The reflective adhesive backing is a chronic adhesive. The longer the time, the stronger the stickiness.
2. Please be careful when pasting and stick it in one go. Pasting it a second time will affect the adhesion.
3. Please stick it firmly when pasting. It will be completely firm after 72 hours and can be used all day long.
4. If you need to remove it after long-term use, please heat it up with a hair dryer before removing.
5.Surface residue glue can be wiped off with alcohol or toilet water.

03 /

Why is the reflective effect I tested not strong?

The reflection you tested was weak because your testing method was incorrect.
1. Please conduct the test at a distance of at least 3 meters. Due to the issue of reflection Angle, it needs to be at a certain distance away.
2. The principle of reflective stickers is that wherever the light source comes from, the reflection will return to the light source, thereby alerting the driver.
3. The reflective intensity of reflective stickers is directly proportional to the light intensity; the stronger the light source, the stronger the reflection.
