DM9670 UN 150 Class 4 Rear Marking Plate

DM9670 UN 150 Class 4 Rear Marking Plate is a professional rear reflective identification product designed for trucks, tractors and other heavy and long vehicles. Adopting advanced micro-prismatic reflective technology, it strictly complies with the UN 150 Class 4 international standard and has excellent long-distance nighttime visibility. In night or other poor light conditions, the product can efficiently reflect light back to the light source (such as vehicle headlights), significantly enhancing the recognition of the vehicle's rear and playing a key role in reducing the incidence of rear-end collisions and other traffic accidents and ensuring the driving safety of heavy-duty vehicles.

Model：	Structure：
DM9670	PMMA with micro prismatic
Standard:	Available Size：
UN150 Class 4	20cm*56.6cm
Color：	Durability:
Yellow retro-reflective/Red retro-reflective (Micro prism)	7 years
Application：	Available designs：
Trucks, tractors, other heavy and long vehicles	Self-adhesive film, Aluminium plate, Magnetic base
Other descriptions：
RR Rectangle with Aluminum Plate

SEND INQUIRY

Details

Features

Features

1. High Standard Compliance, Adapting to Heavy-Duty Vehicle Needs

Strictly complies with the UN 150 Class 4 international standard, specially built for heavy and long vehicles, meeting the high requirements of such vehicles for rear reflective markings. It is suitable for most countries and regions around the world that adopt UNECE regulations, ensuring the export compliance of vehicles and can be put into use without additional modification.

2.Excellent Long-Distance Nighttime Visibility

Using high-quality micro-prismatic reflective material, it has excellent long-distance nighttime reflective performance. At night or in low-light environments, the rear of the vehicle can be clearly identified at a long distance, providing sufficient reaction time for vehicles behind and effectively reducing the risk of nighttime traffic accidents.

3. Pressure Wash Capable, Industrial-Grade Cleaning Resistant

Capable of withstanding direct pressure washing and highly resistant to most industrial cleaning processes, it avoids damage to the product structure and reflective performance caused by cleaning operations.

4. No Edge Sealing Required, Simplified Installation and Maintenance

Adopts a no-edge-sealing design, allowing the product to be directly installed and used off the shelf without additional edge sealing treatment, which greatly saves installation time and labor costs while avoiding maintenance risks caused by aging and falling off of edge sealing.

5. Strong Durability, Long Service Life

The product has a durability period of up to 7 years. It uses high-quality polymethyl methacrylate (PMMA) material, combined with the "RR Rectangle with Aluminum Plate" design, which further enhances the structural stability and anti-aging ability of the product. It can still maintain good performance in complex environments, extend the product replacement cycle and reduce usage costs.

The product has a durability period of up to 7 years. It uses high-quality polymethyl methacrylate (PMMA) material, combined with the "RR Rectangle with Aluminum Plate" design, which further enhances the structural stability and anti-aging ability of the product. It can still maintain good performance in complex environments, extend the product replacement cycle and reduce usage costs.

Related Products List

Product Model	Product Name	Specification	Color	Other descriptions
DM9670（Class 2）	UN 150 Class 2 Rear Marking Plate	20cm*56.6cm	Yellow retro-reflective(Micro prism)/Red fluorescent)	RF Rectangle (DM300 Fluorescent Red)
DM9670（Class 1）	UN 150 Class 1 Rear Marking Plate	14cm*56.5cm	Yellow retro-reflective(Micro prism)/Red fluorescent	RF Diagonal (DM300 Fluorescent Red)
DM9670（Class 3）	UN 150 Class 3 Rear Marking Plate	14cm*56.5cm	Yellow retro-reflective/Red retro-reflective (Micro prism)	RR Diagonal with Aluminum Plate

Wide Applications

Widely used as rear safety markings for various heavy and long vehicles, including but not limited to: Freight trucks, semi-trailer tractors, heavy-duty trucks; Engineering and construction vehicles (such as excavator transport vehicles, muck trucks); Large passenger cars, long-distance passenger transport vehicles; Special operation vehicles (such as cold chain transport vehicles, dangerous goods transport vehicles)

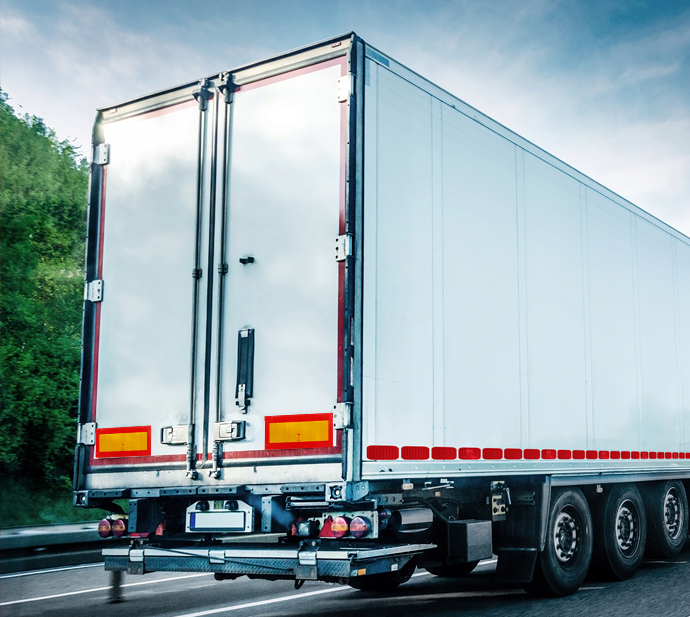

Rear Marking Plate 1

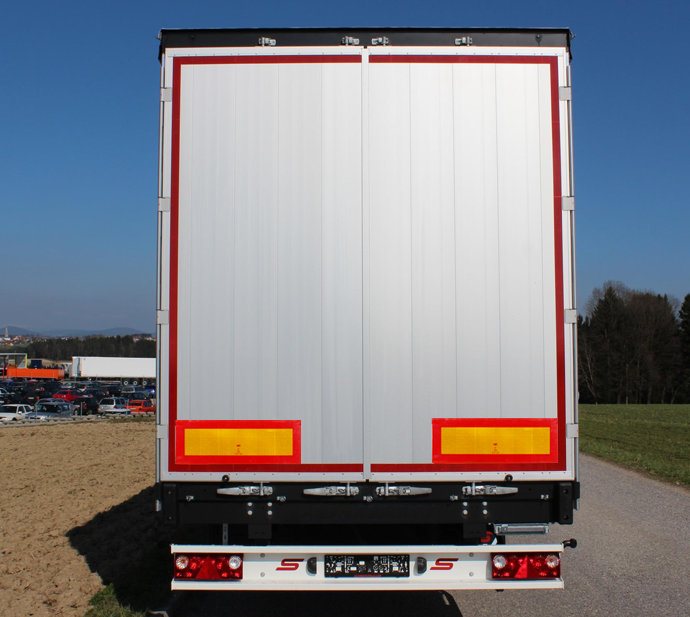

Rear Marking Plate 2

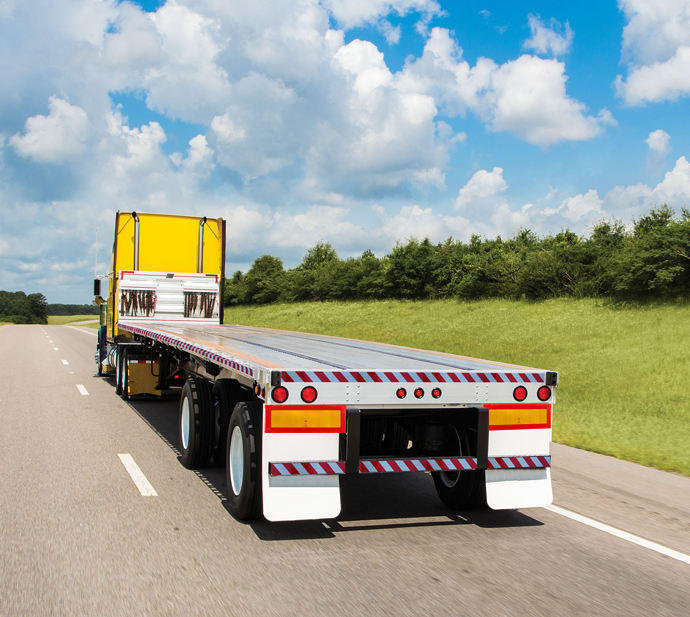

Rear Marking Plate 3

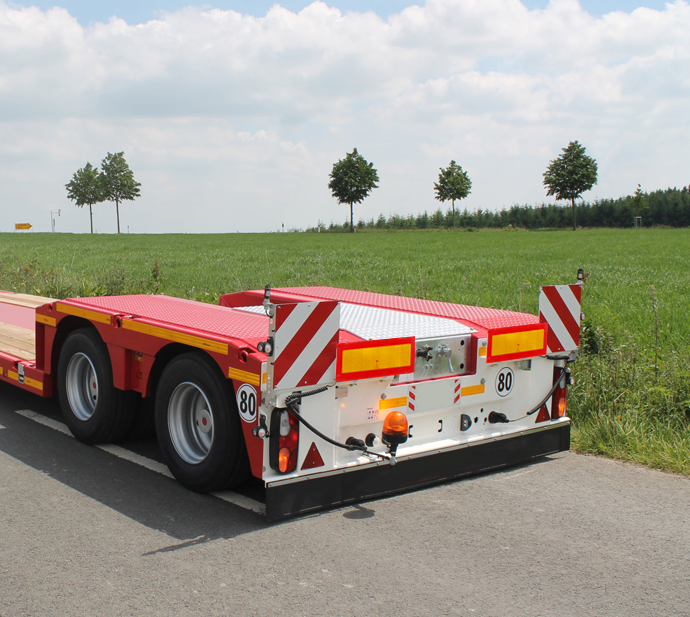

Rear Marking Plate 4

// DM // Product Use Tips

01 /

How to test the reflective effect?

1. Take pictures with a mobile phone at a distance of more than 3 meters in a dark environment.
2. Stand a flashlight at a height of more than 5 meters in the dark, with the flashlight shining at the tip of the nose to reflect light.
3.Conduct the test with a car at a distance of more than 20 meters in a dark environment.

02 /

How is the adhesion performance?

1. The reflective adhesive backing is a chronic adhesive. The longer the time, the stronger the stickiness.
2. Please be careful when pasting and stick it in one go. Pasting it a second time will affect the adhesion.
3. Please stick it firmly when pasting. It will be completely firm after 72 hours and can be used all day long.
4. If you need to remove it after long-term use, please heat it up with a hair dryer before removing.
5. Surface residue glue can be wiped off with alcohol or toilet water.

03 /

Why is the reflective effect I tested not strong?

The reflection you tested was weak because your testing method was incorrect.
1. Please conduct the test at a distance of at least 3 meters. Due to the issue of reflection Angle, it needs to be at a certain distance away.
2. The principle of reflective stickers is that wherever the light source comes from, the reflection will return to the light source, thereby alerting the driver.
3. The reflective intensity of reflective stickers is directly proportional to the light intensity; the stronger the light source, the stronger the reflection.
