DM9670 UN150 Class 1 Rear Marking Plate

The DM9670 (UN150 Class 1) Rear Marking Plate is a high-performance safety component for heavy-duty vehicles, integrating micro-prismatic PMMA structure to deliver reliable retroreflection. It is specially designed for trucks, tractors, and other heavy/long vehicles, enhancing the vehicle’s recognizability day and night to minimize collision risks, and fully complies with international safety standards for global application.

Model：	Structure：
DM9670 (UN150 Class 1)	PMMA with micro prismatic
Product type:	Product specifications：
Rear Marking Plate (UN150 Class 1)	14*56.5cm
Color：	Durability:
Yellow retro-reflective (Micro prism)/Red fluorescent	3 years
Application：	Available designs：
Trucks, tractors, other heavy and long vehicles	Self-adhesive film, Aluminium plate, Magnetic base
Other supplements：	Standard：
RF checkered （DM300Red fluorescent）	UN150 Class 1

SEND INQUIRY

Details

Features

Features

1. Superior day-and-night visibility

Micro-prismatic structure enables efficient retroreflection, while fluorescent/retro-reflective color options ensure the vehicle is easily detected in both daylight and low-light environments.

2. Strong durability

Withstands 3 years of harsh outdoor use, resistant to pressure washing and industrial cleaning processes, no edge sealing required for low maintenance.

3. Versatile installation

Three options (self-adhesive, aluminium plate, magnetic base) adapt to different vehicle body structures and usage scenarios.

4.International compliance

Meets UN150 Class 1 standards, eligible for application in global heavy-duty vehicle safety markets.

Meets UN150 Class 1 standards, eligible for application in global heavy-duty vehicle safety markets.

Related Products List

Product Model	Product Name	Specification	Color	Standard	Other supplements
DM9670(UN150 Class 3)	Rear Marking Plate	14*56.5cm	Yellow retro-reflective/Red retro-reflective (Micro prism)	UN150 Class 1	RR checkered aluminum plate
DM9670（Class 4）	Rear Marking Plate	20cm*56.6cm	Yellow retro-reflective/Red retro-reflective (Micro prism)	UN 150 Class 4	RR Rectangle with Aluminum Plate

Wide Applications

Widely used in trucks, tractors, and other heavy and long vehicles as a rear marking component. It is suitable for various operating environments, including highways, urban roads, construction sites, and remote transportation routes. Whether in daytime, nighttime, or poor weather conditions such as rain and fog, it effectively enhances the vehicle's rear visibility, providing a safe warning for following vehicles.

Rear Marking Plate 1

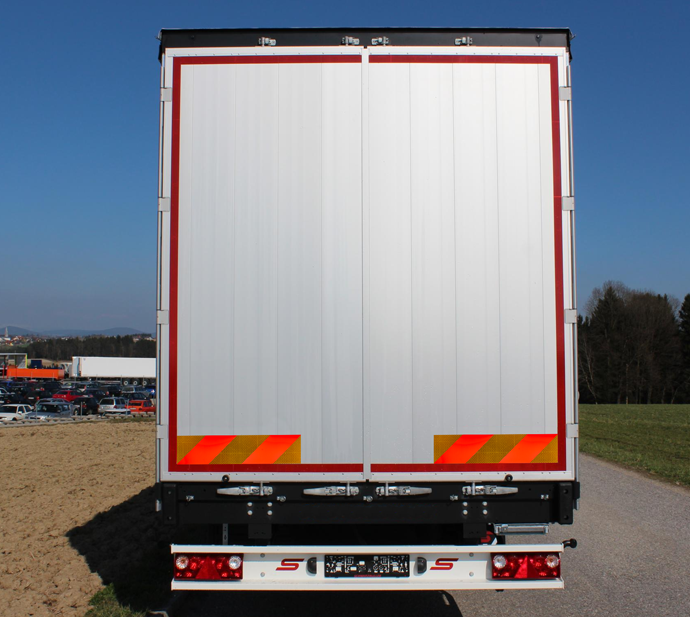

Rear Marking Plate 2

Rear Marking Plate 3

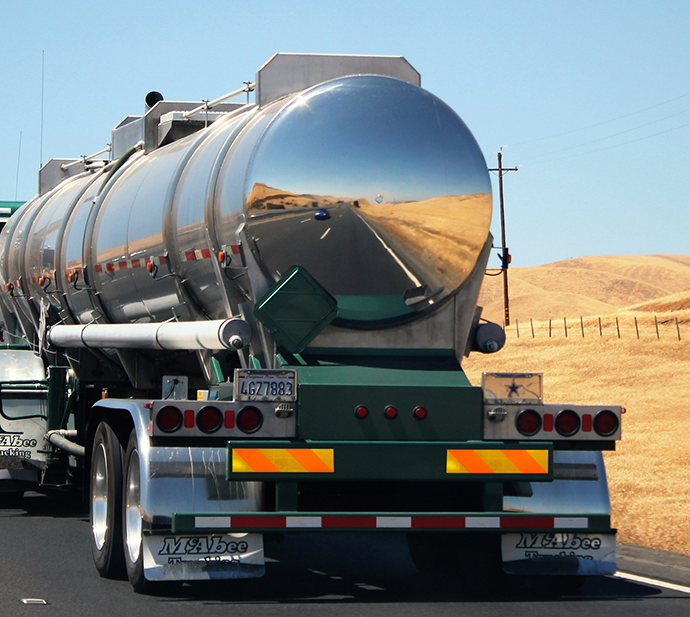

Rear Marking Plate 4

// DM // Product Use Tips

01 /

1. Installation Tips

· Ensure the installation surface is clean, dry, and free of dust, oil, or debris before applying the self-adhesive version.
· For the aluminium plate design, use appropriate fasteners to firmly fix it to the vehicle body to prevent loosening during driving.
· The magnetic base design is suitable for temporary use; check the magnetic adhesion regularly to avoid falling off.

02 /

2. Maintenance Suggestions

· Clean the product regularly with water or neutral cleaning agents; avoid using corrosive chemicals that may damage the reflective surface.
· Inspect the product periodically for cracks, peeling, or reduced reflectivity. Replace it in a timely manner if it fails to meet the visibility requirements.

03 /

3. Test Methods for Reflective Effect

· Mobile Phone Test: Take photos with a mobile phone at a distance of more than 3 meters in a dark environment to check the reflective brightness.
· Flashlight Test: Place a flashlight at a height of over 5 meters in the dark and irradiate the marking plate to observe the retroreflection effect.
