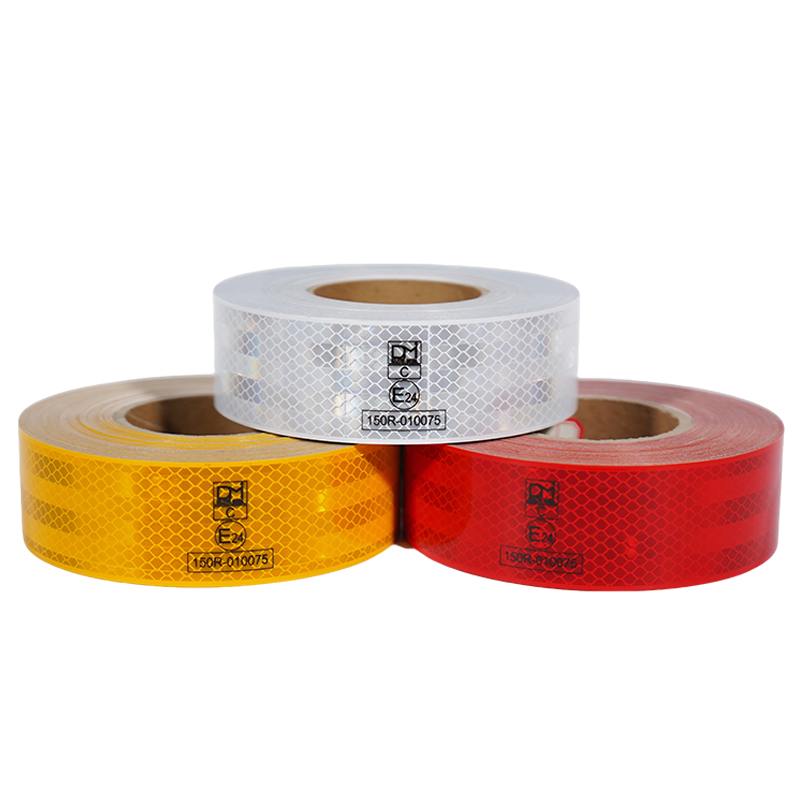

DMCT1700 Conspicuity Marking Tape Series

The DMCT1700 series is a non-metallized microprismatic reflective film that not only meets but exceeds both UN150 Class C and FMVSS108 standards. Featuring a PMMA front film and a retroreflective system based on sealed air-backed microprisms utilizing total internal reflection, it delivers outstanding reflectivity. The film is further equipped with a pressure-sensitive adhesive backing layer protected by transparent release paper. The structural design provides exceptional weather resistance, high reflectivity, durability, and self-adhesive properties, making it specifically suited for trucks, trailers, and other heavy-duty vehicles that demand long-term durability.

Model：	Certified：
DMCT1700	UN150 Class C, FMVSS 108
Durability:	Product specifications：
7 years	50mm*45.7m/roll
Color：	Application:
White, yellow, red, red-white	trucks,trailers,other heavy and long vehicles etc.

SEND INQUIRY

Details

Features

Features

1.Fully compliant with DOT-C2 certification under FMVSS108 standards and UN150 Class C certification requirements.

2. DMCT1700 has a sealed air cells system of microprisms to offer excellent retrore- flectivity, which can effectively reduce accident rates and enhance driving safety.

3. Metal-free encapsulated microprismatic structure delivers heightened visual clarity under daylight conditions.

4. The weather-resistant PMMA overlay ensures exceptional durability with a 7-year service life. Resists corrosion from most solvents, waterproof, and prevents delamination.

Its backing features a pressure-sensitive adhesive layer protected by a clear release liner. Utilizing the principle of total internal reflection ,the product delivers outstanding retroreflective performance and excellent weather resistance.

Related Products List

Product Model

Product Name

Specification

Color

DM9600

ECE Conspicuity Marking tape

50mm*50m

Yellow,White,Red

DM9300

DOT-C2 Conspicuity Marking tape

50mm*45.7m

white 6”+ red 6”,

white 7”+ red 11”

Wide Applications

trucks,trailers,other heavy and long vehicles etc.

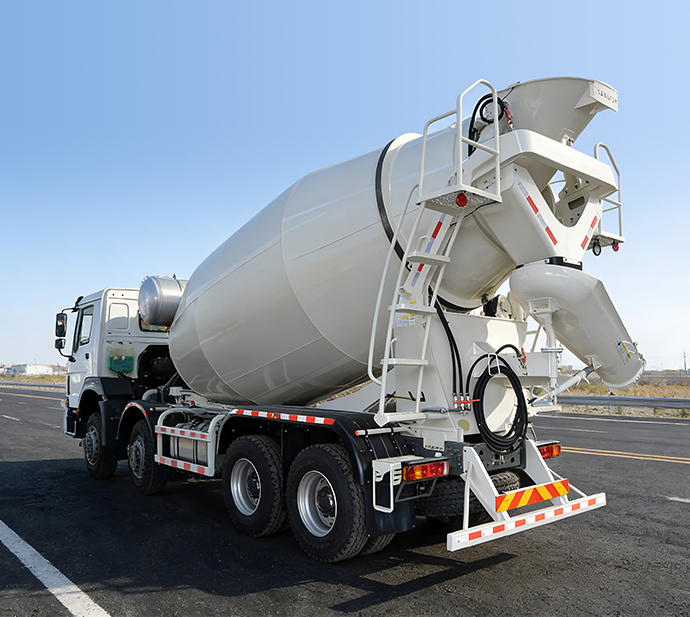

other heavy

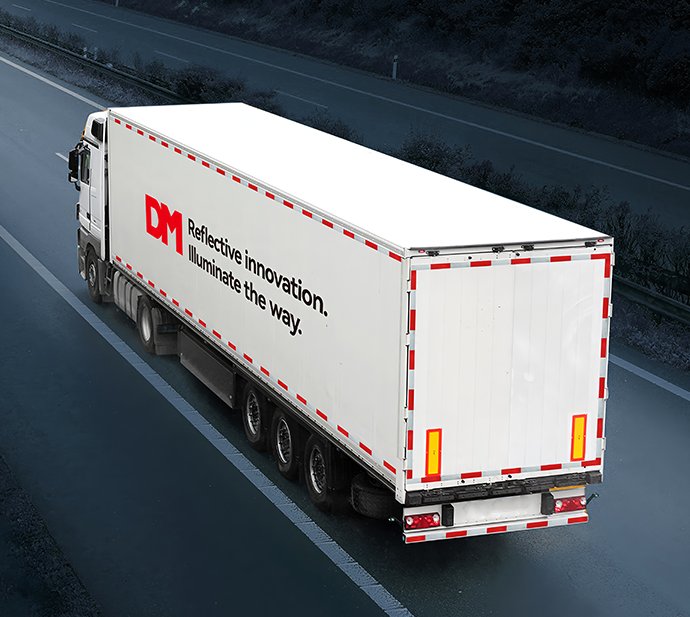

Trucks

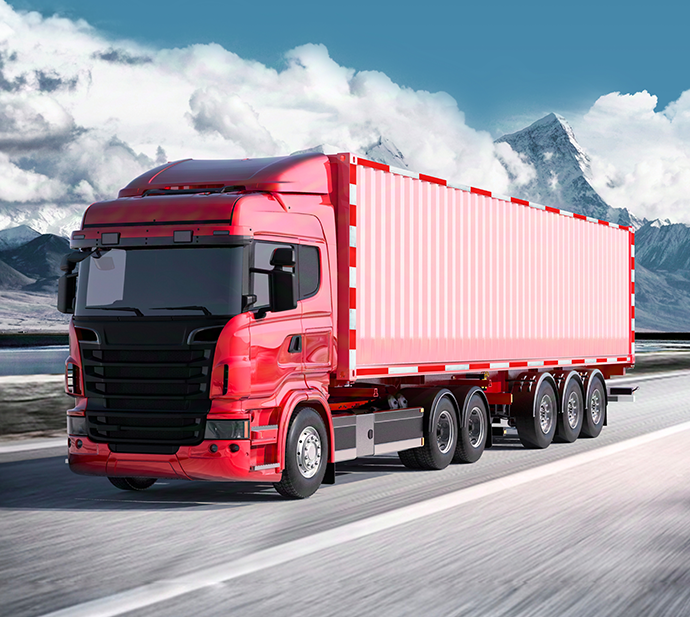

Trucks2

How to Distinguish DM9600,DM9300&DMCT1700?

DM9600

- Embedded lantern pattern
- Single color (only white/yellow/red)
- Two types(segmented tape/rigid tape)

DMCT1700

- Embedded diamond pattern
- Alternating red & white colors
- Displays alternating light-dark strips by changing the viewing angle

DM9300

- Embedded Hexagonal pattern
- Alternating red & white colors

// DM // Product Use Tips

01 /

How to assure proper adhesive bonding?

The adhesive is protected by a release paper, which shall be removed by peeling, without soaking in water or other solvents. The product must be applied when the air and surface temperature is between 15°C and 38°C to assure proper adhesive bonding. Surfaces must be cleaned for all grease, oil and dirt. Use a clean towel and Isopropyl alcohol or similar to wipe the surface before application. If any air bubbles are trapped, use a pin to puncture the bubble and squeegee to push the air towards the pin hole.

02 /

How to perform maintenance and cleaning?

Hand wash with sponge, cloth, or soft brush using warm water and detergent. The cleaner must be wet, non-abrasive, without strong solvents and have a pH value between 3 and 11 (neither strongly acidic nor strongly alkaline). Rinse thoroughly.To remove grease, oil. or tar, use cloth moistened with heptane, VM&P naptha or mineral spirits. Wash with detergent and water then rinse thoroughly. Using high pressure cleaning equipment, the following conditions should be applied:
• Maximum pressure 80 bar
• Maximum temperature 60°C
• Minimum of 1 metre distance of cleaning jet from sheeting surface
• Cleaning wand to be held at no greater angle than 15 degree from perpendicular to the sheeting surface
• Wide spray pattern

03 /

How to properly store the product?

Store the tape in a clean ,dry area without direct sunlight.Maintain storage temperature between 65-75°F (18-24°C) with humidity between 30-50%.Store rolls horizontally in carton or in original packaging .
