electric vehicle reflector

The reflector body reflective marking ensures quality, provides excellent reflective performance, exhibits strong adhesion without detachment, is impact-resistant, and is odorless. The DM reflector features easy installation, robust durability, heat resistance, corrosion resistance, and impact resistance, complying with the national standard GB 31887-2015 "Bicycle Reflective Devices".

Product model	Type
electric vehicle reflector	Microprism
Product specifications	Product color

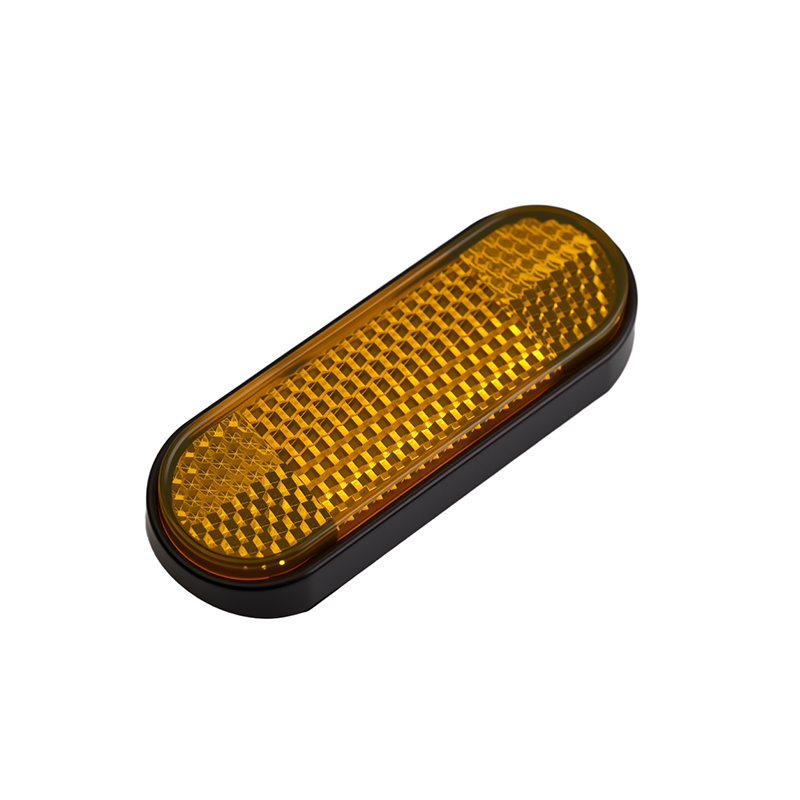

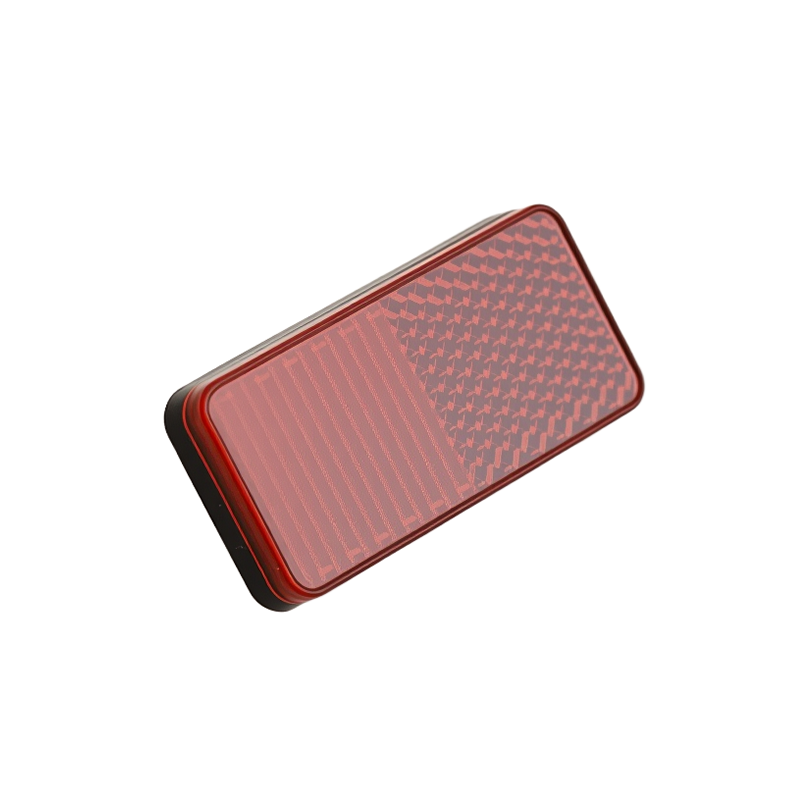

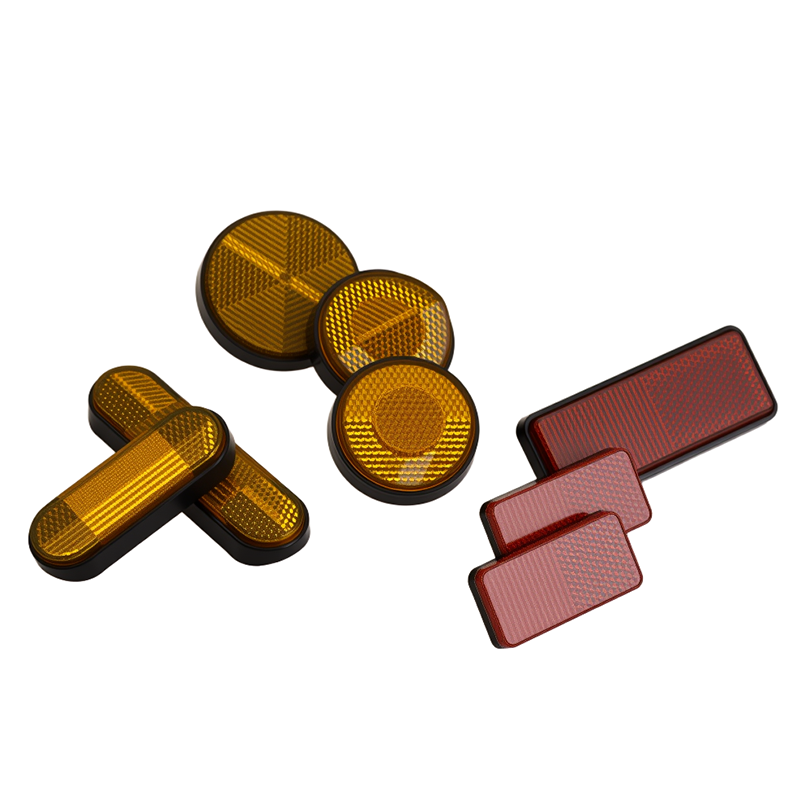

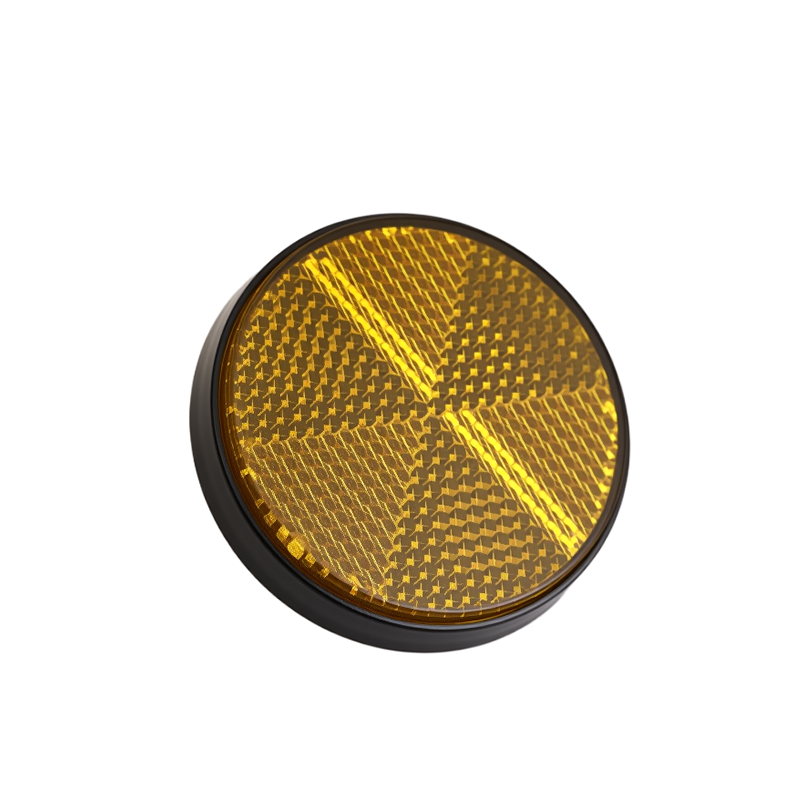

Rectangular/Elliptical/Circular	Red/White/Yellow
Certified
GB 31887-2015

SEND INQUIRY

Details

Features

Features

High visibility

The device employs a fully sealed micro-prism optical structure, with the lens surface coated through metal vapor deposition to form a total reflection film layer. A pressure-sensitive adhesive is directly applied, eliminating air capsule gaps. It exhibits excellent nighttime reflectivity, clearly delineating vehicle contours from 100 meters away, achieving a threefold increase in nighttime visibility.

Durable and robust

The surface layer is made of highly transparent and weather-resistant materials. It withstands temperature cycling tests from-40°C to 70°C without brittling or softening under extreme northern cold or southern sun exposure. The material also passes a 2000-hour xenon lamp aging test. The pressure-sensitive adhesive and surface layer are resistant to corrosion by fuel oil, pesticides, and de-icing agents.

Meet the standards

It fully complies with the GB 31887-2015 "Reflective Devices for Bicycles" Standard for Reflector-Type Reflective Marking, and achieves internationally leading performance.

Related Products List

Product Model	Product Name	Specification	Color
VCDM-4	Motor vehicle reflector	5cm*15cm	Red, White, Yellow

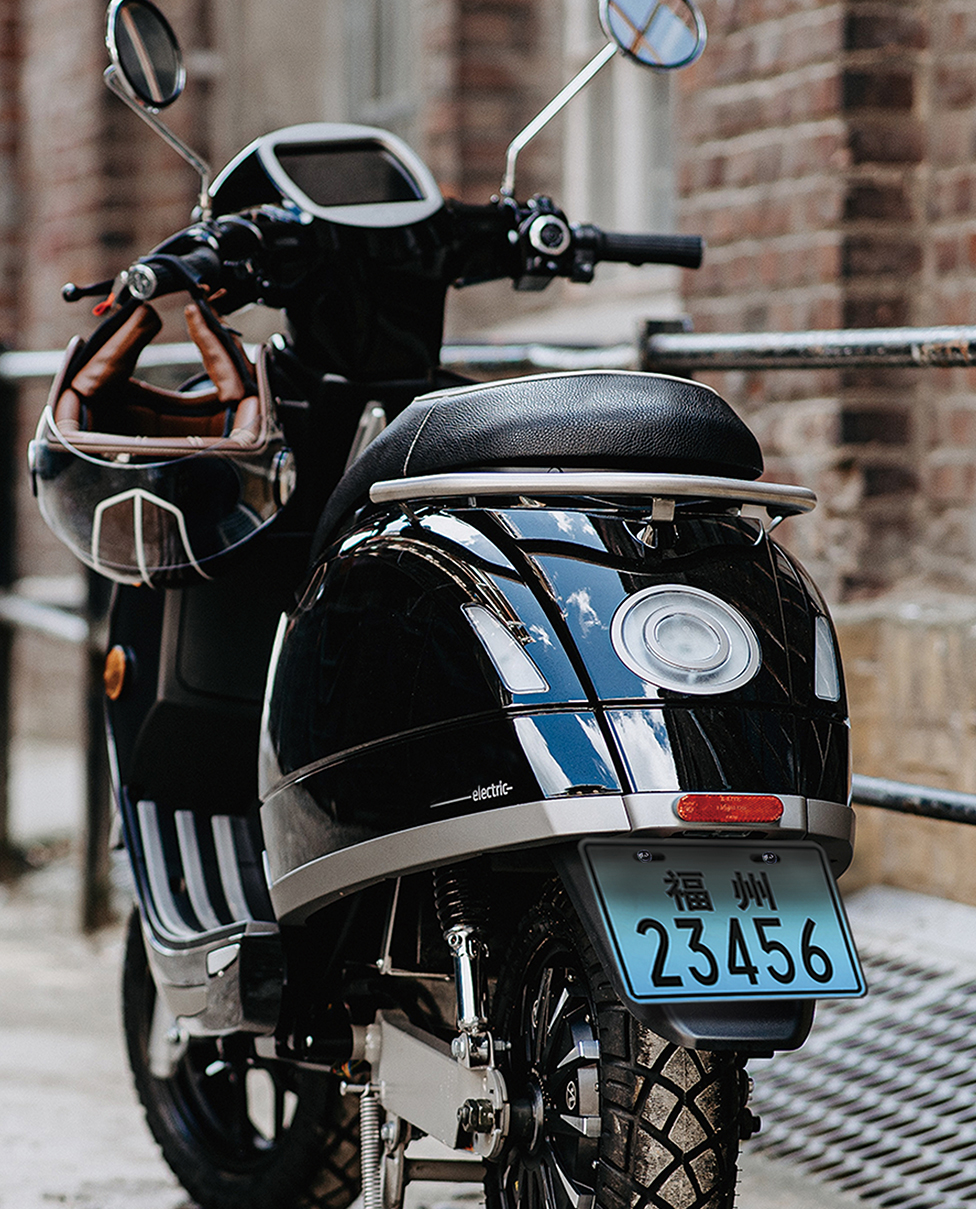

Applications

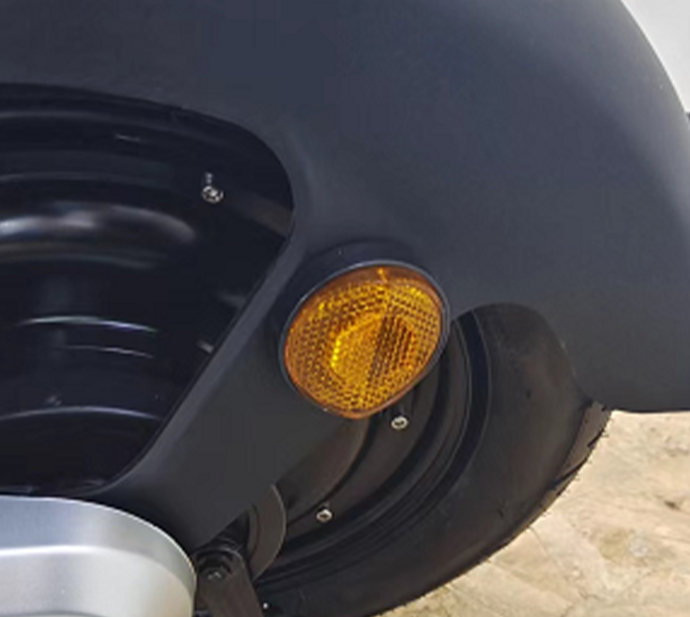

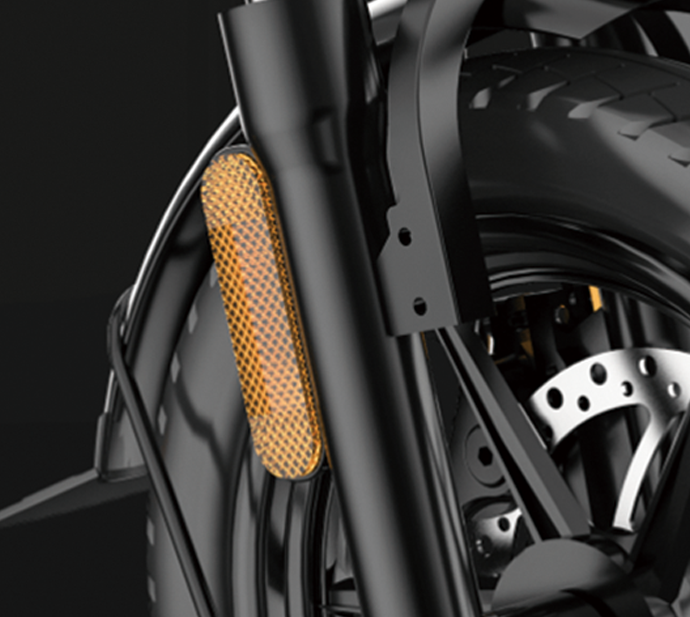

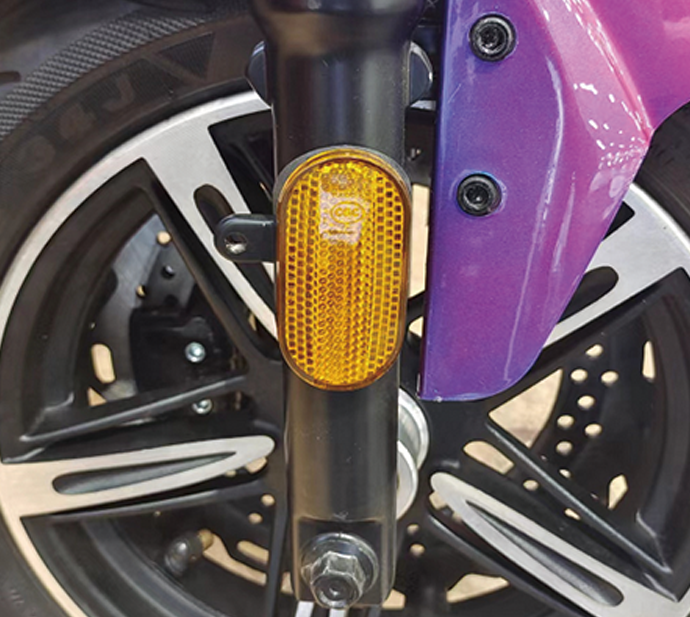

Processing:Labeling plate for electric bicycles

Labeling plate for electric bicycles

Labeling plate for electric bicycles

Labeling plate for electric bicycles

// Tips // Product installation prompt

01 /

Clean the vehicle body surface thoroughly to remove all dust and oil residues from the adhesive areas.

02 /

Before installation, cut the reflective markings to the appropriate length according to the vehicle body length

03 /

Remove the backing paper from the product's reverse side and attach it to the designated body area

04 /

While applying adhesive, press the surface flat to ensure complete bonding between the product and the vehicle body without air pockets

05 /

After positioning the reflective markings on the vehicle body surface, apply them uniformly in the same direction. Ensure the markings adhere firmly to the surface

DM Customization Process

Selection

Determine product model, color, quantity price and delivery time!
Finalization

Please provide the drawings for the appearance design and structural design of the delineators. We will help check for any design defect.
Order

Obtain detailed technical data sheets with customized solutions.
Production

Start production immediately once the design is confirmed to be error-free.
Proofing

Confirm with the customer after making the sample
Shipment

Arrange shipment immediately after final acceptance is completed.
